Introduction of Dense phase conveying equipment

Dense phase conveying equipmentis a conveying system that uses airflow to convey powder and granular materials.。

1、Brief introduction of Dense phase conveying equipment

Dense phase conveying equipmentIt uses the energy of airflow to transport powder materials along the airflow direction in a closed pipeline.，is a popular Dense phase conveying equipment，it is an ideal choice for customers to buy Dense phase conveying equipment。

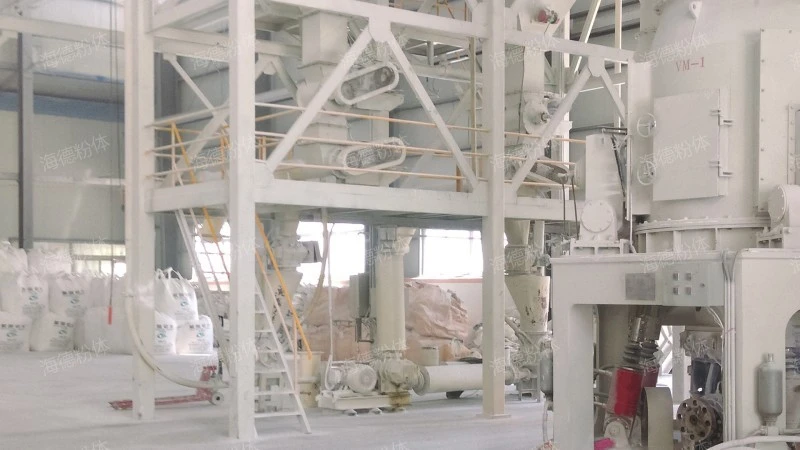

Dense phase conveying equipment

2、Dense phase conveying equipment video live broadcast

On-site aerial photography of Dense phase conveying equipment。

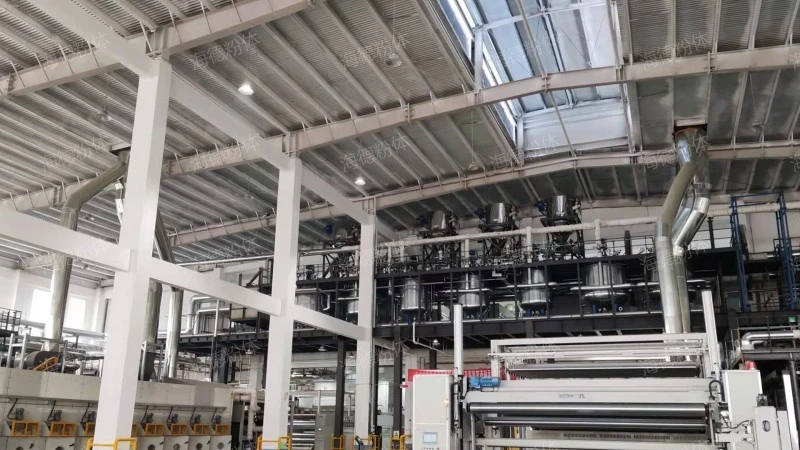

Dense phase conveying equipment

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. the advantage is The conveying system is closed, which can prevent the materials from being affected with damp, soiled and mixed with other sundries in the conveying process, and ensure the conveying quality of the materials.、In the process of conveying, various technological operations can be carried out at the same time, such as cool.、Can realize the transportation of materials in a closed pipeline.，Not affected by environment, climate and other conditions, fully sealed and pollution-free transportation.、Not only can materials be transported from multiple feed points to the discharge point in turn, but also materials can be transported from multiple feed points to the discharge point at the same time.、PLC intelligent control, high degree of automation and simple operation.，meet the needs of material transportation。

3、Functional advantages of Dense phase conveying equipment

Dense phase conveying equipments have the following advantages.

1. High conveying quality

In the process of conveying, the Dense phase conveying equipment system can prevent the materials from being wetted, stained or mixed with other sundries, thus ensuring the quality of the conveyed materials.

2. Convenient maintenance and easy automation.

The Dense phase conveying equipment system has relatively few moving parts, which makes the maintenance more convenient. At the same time, due to its structural characteristics, the system is easy to realize automatic control, which improves production efficiency and management convenience.

3. structure

Dense phase conveying equipment has simple structure and convenient operation.

4. Small floor space

Compared with the traditional mechanical transportation mode, the equipment and pipelines required by the Dense phase conveying equipment occupy a smaller area, which can make full use of the space and reduce the construction cost and floor space of the factory building.

5. Flexible configuration of conveying pipeline and optimization of process flow.

The Dense phase conveying equipment is carried out in a closed pipeline, which effectively reduces the flying and escape of dust, improves the working environment, reduces environmental pollution, and also protects materials from external pollution.

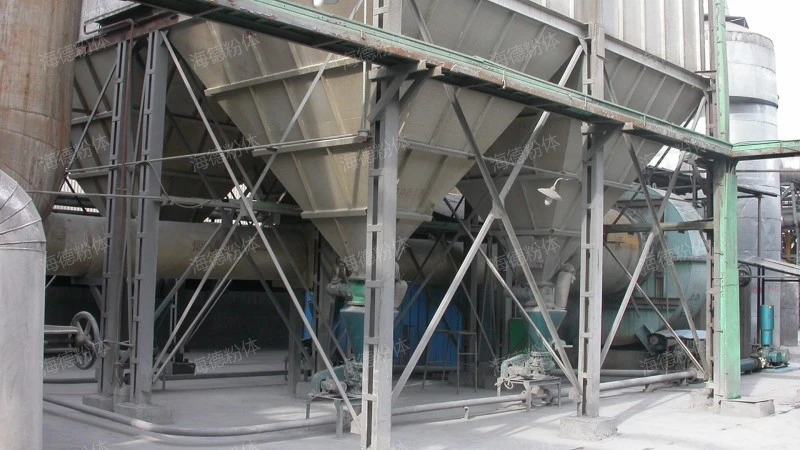

Dense phase conveying equipment

4、Advantages of Dense phase conveying equipment principle

Dense phase conveying equipmentat work,Mainly based on aerodynamic force, the continuous and stable transportation of granular materials is realized in a closed pipeline by using the energy of airflow.，is a kind of Dense phase conveying equipment manufactured by hyde powder。

Dense phase conveying equipment

5、Dense phase conveying equipment structure

The Dense phase conveying equipment structure is introduced as follows:

1. Conveying pipeline system

The conveying pipeline is a channel for conveying materials after mixing with airflow. It is made of wear-resistant and corrosion-resistant materials to ensure that the materials will not be polluted or damaged during transportation. The diameter, shape and length of the pipeline will be designed according to the characteristics and delivery capacity of the transported materials. In addition, the pipeline system may also include some auxiliary fittings, such as valves, elbows, expansion joints, etc., for regulating air flow and pipeline connection.

2. Air source device

The air source device is the power core of the Dense phase conveying equipment system, which provides the airflow power needed for transportation. Common air source equipment includes roots blower, compressor, centrifugal blower and water ring vacuum pump. These devices can generate stable airflow and provide sufficient power for the transportation of materials.

3. Feeding device

The feeding device is responsible for feeding materials evenly and stably into the conveying pipeline. It is usually installed at the beginning of the system, and uses the negative pressure or positive pressure formed by the air source device to mix materials with air in a certain proportion and send them into the pipeline. Common feeding devices include rotary valves, screw conveyors, rotary feeders, screw pumps, silo pumps and Venturi nozzles. The selection of feeding device should be considered comprehensively according to the characteristics of materials and transportation requirements.

4. control system

The control system is the "brain" of the Dense phase conveying equipment system, which is responsible for monitoring and controlling the whole system. Through the control equipment such as programmable controller, the parameters such as airflow speed, feed rate and system pressure can be accurately adjusted and controlled to ensure the stable operation of the system and meet the production requirements.

5. dust pelletizing system

Dust removal system is very important for the environmental protection performance of Dense phase conveying equipment system. It is responsible for handling the dust and waste gas generated in the transportation process to ensure that the discharge meets the requirements of environmental protection. Dust removal system usually includes dust collector, fan and discharge pipeline. According to different material characteristics and environmental protection requirements, different dust removal equipment and technical schemes can be selected.

Dense phase conveying equipment

6、Dense phase conveying equipment use

The purpose of Dense phase conveying equipment is introduced as follows:

1. Long distance transportation

The Dense phase conveying equipment system can realize long-distance material transportation and meet the demand of long-distance material transfer. This is especially important for some large factories or cross-regional material transportation.

2. Long-distance and multipoint transportation

The Dense phase conveying equipment system can realize long-distance material transportation and meet the demand of long-distance material transfer. At the same time, it can also realize multi-point transportation, that is, materials are collected from multiple locations and transported to a centralized point, or materials are dispersed from a centralized point to multiple locations. This flexibility makes Dense phase conveying equipments have important application value in large factories and cross-regional material transportation.

3. Multi-point transportation

The Dense phase conveying equipment system can be flexibly configured to realize transportation from multiple centralized points to one centralized point, or from one centralized point to multiple centralized points, so as to meet the complex production layout requirements.

4. Process assistance

In some production processes, Dense phase conveying equipments are not only used for conveying materials, but also as part of the process. For example, in the chemical and pharmaceutical industries, the Dense phase conveying equipment system can cooperate with other equipment to realize process operations such as mixing, grading, drying and cooling of materials, and improve production efficiency and product quality.

5. Bulk material transportation

The Dense phase conveying equipment is especially suitable for conveying powdery, granular and flowable bulk materials. These materials include, but are not limited to, cement, fly ash, grain, plastic particles, pharmaceutical powder, etc. Through the Dense phase conveying equipment, these materials can be efficiently transferred between different production links or equipment.

Dense phase conveying equipment

Dense phase conveying equipmentis a Dense phase conveying equipment，Mainly based on aerodynamic force, compressed air or other gases generate airflow, so that material particles are suspended in the airflow or transported in groups along the pipeline. In pressure transportation, high-pressure gas pushes materials to flow along the pipeline; In vacuum transportation, the material is sucked and transported to the target position through the negative pressure environment in the pipeline.。
