Introduction of Quantitative scale pneumatic conveying equipment
Quantitative scale pneumatic conveying equipmentis a kind of technical integrated system that uses air or gas flow as conveying power to convey bulk solid materials in pipelines.。The following is to introduce the Quantitative scale pneumatic conveying equipment:
1、Brief introduction of Quantitative scale pneumatic conveying equipment
Quantitative scale pneumatic conveying equipmentis a kind of material conveying equipment which uses air flow energy to convey granular materials in a closed pipeline.，was developed and designed by hyde powder。

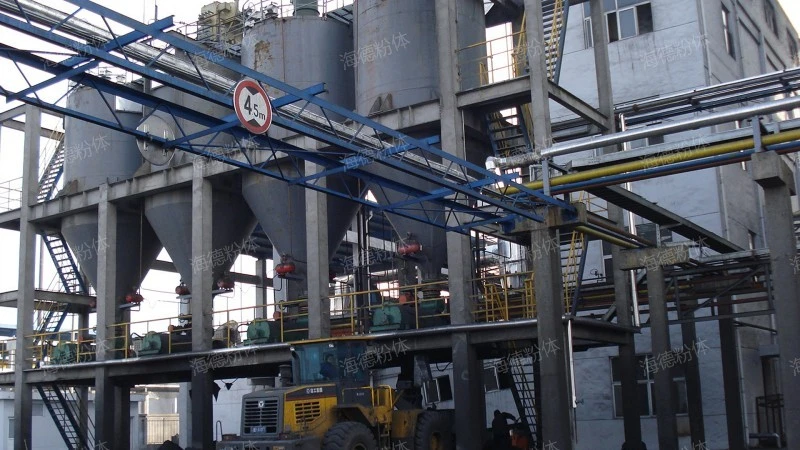

Quantitative scale pneumatic conveying equipment
2、Quantitative scale pneumatic conveying equipment video detail
hyde powder provides customers with on-site high-definition video, fully demonstrates the advantages of on-site productt operation, and helps customers to deeply understand the Quantitative scale pneumatic conveying equipment production process and production site, and gain favorable comments and recognition from customers.。

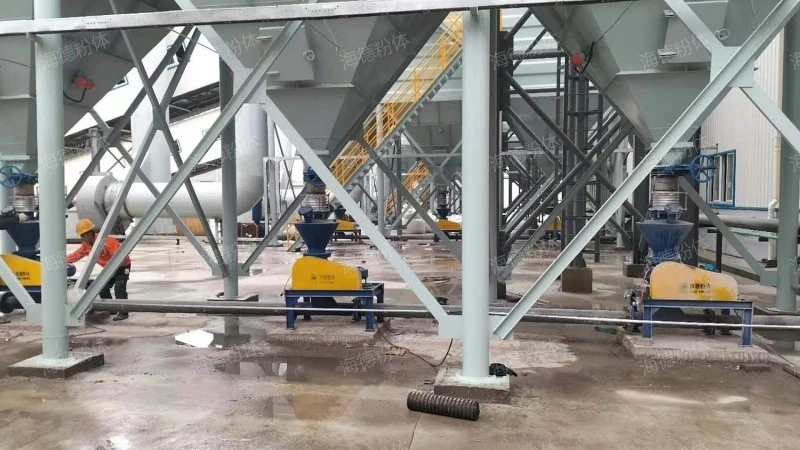

Quantitative scale pneumatic conveying equipment
As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. is a material conveying technology for conveying granular particles in a pipeline by means of compressed air flow.。
3、Quantitative scale pneumatic conveying equipment principle
Quantitative scale pneumatic conveying equipmentThe material and air flow form a gas-solid two-phase flow to realize continuous and stable material transportation.，it has the functions of material handling, Automatic control, Physical processing assistance, Explosion-proof involves and Closed conveying，It is mostly used in Dust removal and essence, Long distance transportation, Multi-point transportation, material handling, Process assistance, Bulk material transportation and so on。

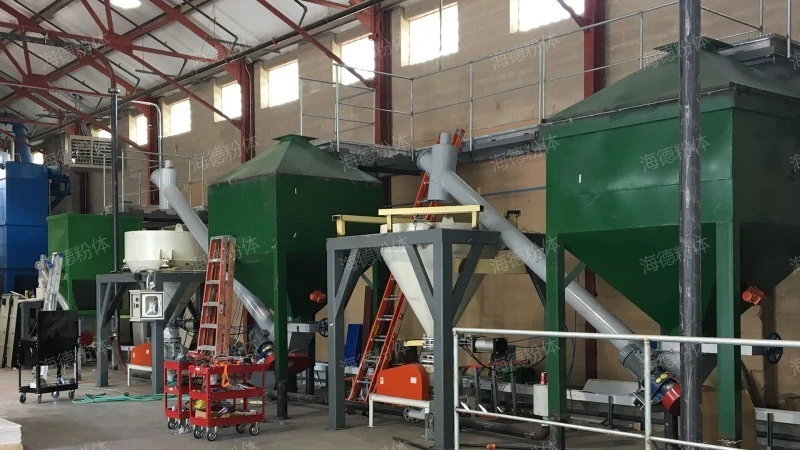

Quantitative scale pneumatic conveying equipment
4、Quantitative scale pneumatic conveying equipment structure
The Quantitative scale pneumatic conveying equipment structure is introduced as follows:
- Conveying pipeline system
- Air source device
- control system
- dust pelletizing system
- Bunker system
The conveying pipeline is a channel for conveying materials after mixing with airflow. It is made of wear-resistant and corrosion-resistant materials to ensure that the materials will not be polluted or damaged during transportation. The diameter, shape and length of the pipeline will be designed according to the characteristics and delivery capacity of the transported materials. In addition, the pipeline system may also include some auxiliary fittings, such as valves, elbows, expansion joints, etc., for regulating air flow and pipeline connection.
The air source device is the power core of the Quantitative scale pneumatic conveying equipment system, which provides the airflow power needed for transportation. Common air source equipment includes roots blower, compressor, centrifugal blower and water ring vacuum pump. These devices can generate stable airflow and provide sufficient power for the transportation of materials.
The control system is the "brain" of the Quantitative scale pneumatic conveying equipment system, which is responsible for monitoring and controlling the whole system. Through the control equipment such as programmable controller, the parameters such as airflow speed, feed rate and system pressure can be accurately adjusted and controlled to ensure the stable operation of the system and meet the production requirements.
Dust removal system is very important for the environmental protection performance of Quantitative scale pneumatic conveying equipment system. It is responsible for handling the dust and waste gas generated in the transportation process to ensure that the discharge meets the requirements of environmental protection. Dust removal system usually includes dust collector, fan and discharge pipeline. According to different material characteristics and environmental protection requirements, different dust removal equipment and technical schemes can be selected.
The silo temporarily stores and releases materials. The silo is usually designed as a pyramid or conical structure to facilitate the storage and unloading of materials. The design of silo needs to consider the different problems of materials in the process of storage and unloading and the flow form of materials.
Quantitative scale pneumatic conveying equipment
5、Functional advantages of Quantitative scale pneumatic conveying equipment
Quantitative scale pneumatic conveying equipments have the following advantages.
- Environmental protection and pollution-free
- Material quality protection
- Small floor space
- Strong sealing
- Low maintenance cost
In the process of Quantitative scale pneumatic conveying equipment opening, dust pollution and noise pollution will hardly occur, which is more environmentally friendly than traditional mechanical transportation.
In the process of conveying, the Quantitative scale pneumatic conveying equipment can prevent the materials from getting wet, soiled or mixed with other impurities, thus ensuring the quality of the conveyed materials.
Compared with the traditional mechanical conveying mode, the Quantitative scale pneumatic conveying equipment system can save a lot of mechanical equipment and conveying pipes, thus saving a lot of space.
The conveying pipeline can be flexibly configured according to the actual layout of the factory, which makes the process configuration of the factory equipment more reasonable, optimizes the production process and improves the labor productivity.
The Quantitative scale pneumatic conveying equipment system has less wear parts, lower maintenance cost and higher reliability, which reduces the risk of production interruption.
Quantitative scale pneumatic conveying equipment
6、hyde's after-sales service
Service has a starting point, and satisfaction has no end. hyde powder provides services such as free design scheme before sale, free installation and debugging of products during sale, and regular return visits after sale to solve customer problems in time. If you have special requirements for products, manufacturers also support tailor-made.。
hyde
Quantitative scale pneumatic conveying equipmentthe product looks beautiful.，is a Quantitative scale pneumatic conveying equipment，is a reliable material conveying equipment for conveying powdery materials under high pressure.。
