What is a AV pump? Introduction to the advantages and characteristics of the AV pump

AV pumpis a commonly used powder conveying equipment，is a AV pump，was developed and designed by Hyde。The following is to introduce the AV pump:

1、Brief introduction of AV pump

AV pumpis a common equipment for powder conveying，Widely used in process control, save space, reduce material loss, material handling and environmental protection and dust removal，large conveying capacity,compact structure,corrosion-resistant,easy maintenance,compact structure，the product looks beautiful.，it is an ideal choice for customers to buy AV pump。

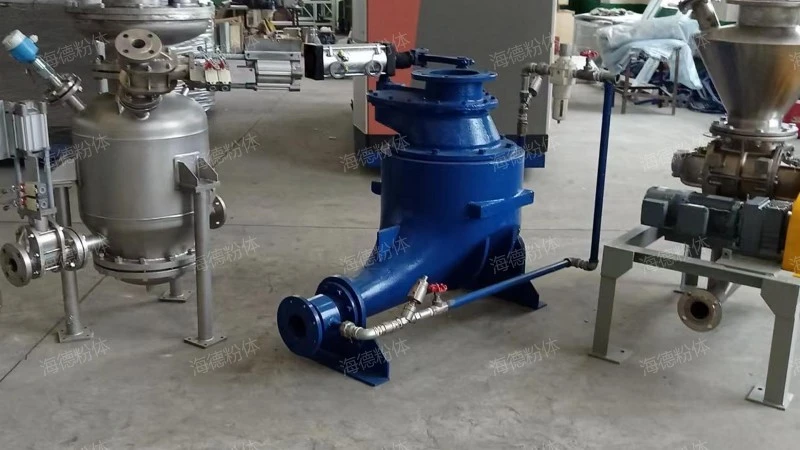

AV pump

2、AV pump real shot picture

High-definition pictures for various AV pump, panoramic display,the product looks atmospheric., reliable in quality and trustworthy.。

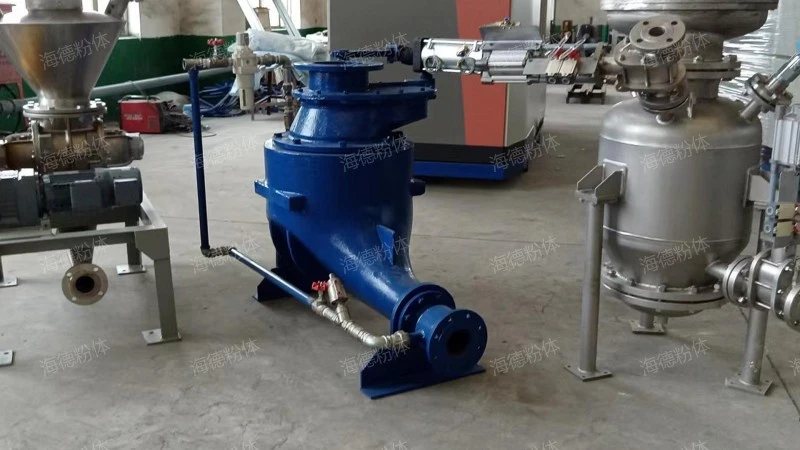

AV pump

Note: All the pictures in this article were taken by Hyde powder manufacturer.。

3、AV pump use

AV pumpCommonly used inprocess control,save space,environmental protection and dust removal,material handling,reduce material loss and so on。

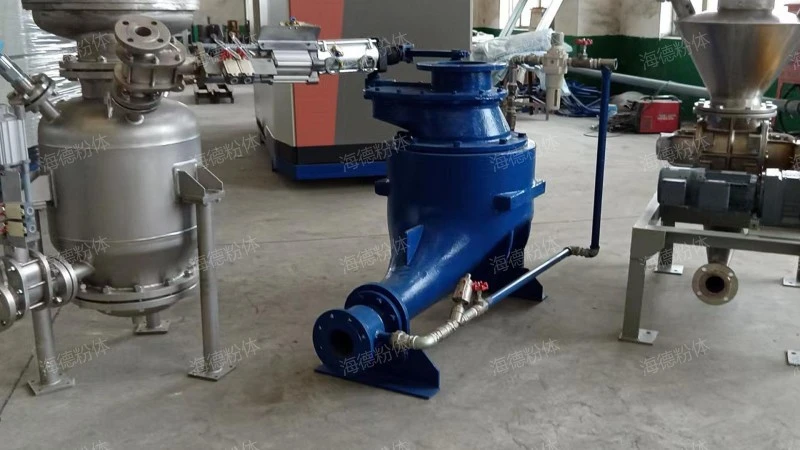

AV pump

4、Working principle of AV pump

AV pumpthe principle is simple.Using compressed air as power source, a certain air pressure difference is formed in the door by controlling the switch of the air inlet valve, so as to push the materials to be transported along the pipeline. The whole conveying process is carried out at a speed lower than the suspension speed, which avoids the complete mixing of materials and transmission media and reduces the risk of material wear and pipeline blockage.。

AV pump

5、AV pump structure

The AV pump structure is introduced as follows:

1. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the AV pump during the operation of the AV pump to prevent material blockage and deposition. This helps to keep the AV pump system running smoothly.

2. electric cabinet

The electric cabinet is the control center of the AV pump system, which is responsible for receiving signals from various sensors and controlling the operation of the AV pump according to the preset program. It usually has the function of programmable controller, and can realize accurate control of the AV pump system.

3. Air control box

Each AV pump is equipped with an air control box to control the running state of the AV pump. The air control box controls the switch of the air inlet valve by receiving the signal from the electric control box, so as to realize the adjustment of the air pressure in the AV pump.

4. Intake pipe

The air intake pipe is a pipe system that provides compressed air to the AV pump. A group of AV pumps usually share one air intake pipe, but auxiliary air intake pipes can be added according to the number of AV pumps. The quality of the air inlet pipeline is required to ensure that the compressed air used for transportation reaches a certain pressure dew point.

5. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the AV pump.

AV pump

6、Structural characteristics of AV pump

The AV pump has the following structure

1. Feed dome valve

The feeding dome valve is the key component to control the material entering the AV pump. It can be opened when needed, allowing materials to enter the AV pump, and closed when not needed to ensure that materials will not leak.

2. Ash conveying pipeline

Ash conveying pipeline is a pipeline system connecting the AV pump and the terminal ash storage. After being compressed in the AV pump, the materials are transported to the terminal ash storage for storage or further treatment through the ash conveying pipeline.

3. Ash tank body

As the main part of the AV pump, the ash chute body is used to receive and store the materials to be transported. It usually has the characteristics of wear resistance and corrosion resistance to meet the transportation needs of different materials.

4. pressure transducer

The pressure sensor is used to monitor the pressure change in the AV pump system. When the pressure in the system reaches the preset value, the pressure sensor will send a signal to the electric cabinet to control the switch of the intake valve and the running state of the AV pump.

5. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the AV pump during the operation of the AV pump to prevent material blockage and deposition. This helps to keep the AV pump system running smoothly.

AV pump

AV pumpat runtime,Using the pressure difference generated by compressed air in the pipeline, the material is pushed to be transported along the pipeline at a speed lower than the suspension speed. This transportation mode avoids the complete mixing of materials and transmission media, reduces the risk of material wear and pipeline blockage, and allows a long transportation distance and moderate transportation capacity.，is a kind of high quality and low price AV pump，it is widely used inglass fibre,heavy industry,metallurgy,building materials,forge and other industries。
