Introduction to AV pump powder conveying, AV pump advantages, characteristics and principles

AV pump powder conveyingis a common equipment for pneumatic conveying。The following is to introduce the AV pump powder conveying:

1、Brief introduction of AV pump powder conveying

AV pump powder conveyingis a kind of material conveying equipment which uses the energy of air flow to continuously convey powdery and granular materials，customizable。

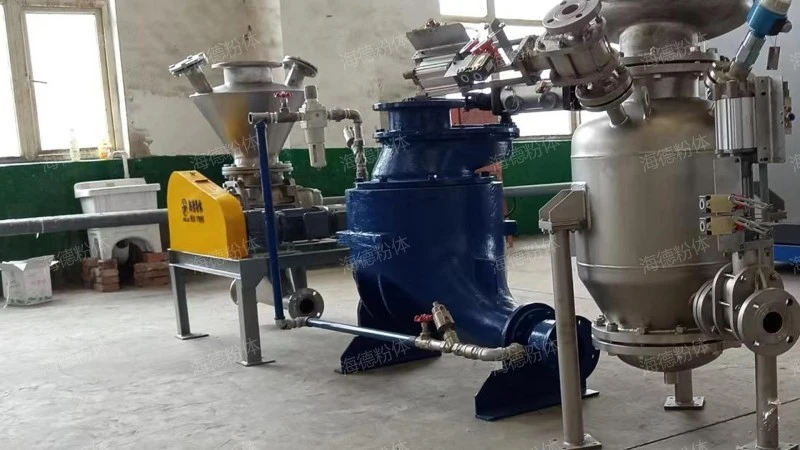

AV pump powder conveying

2、AV pump powder conveying structure composition

The AV pump powder conveying has the following structure

1. Feed dome valve

The feeding dome valve is the key component to control the material entering the AV pump powder conveying. It can be opened when needed, allowing materials to enter the AV pump powder conveying, and closed when not needed to ensure that materials will not leak.

2. Auxiliary blowing device

The auxiliary blowing device is used to blow the pipeline and the interior of the AV pump powder conveying during the operation of the AV pump powder conveying to prevent material blockage and deposition. This helps to keep the AV pump powder conveying system running smoothly.

3. electric cabinet

The electric cabinet is the control center of the AV pump powder conveying system, which is responsible for receiving signals from various sensors and controlling the operation of the AV pump powder conveying according to the preset program. It usually has the function of programmable controller, and can realize accurate control of the AV pump powder conveying system.

4. Ash conveying pipeline

Ash conveying pipeline is a pipeline system connecting the AV pump powder conveying and the terminal ash storage. After being compressed in the AV pump powder conveying, the materials are transported to the terminal ash storage for storage or further treatment through the ash conveying pipeline.

5. level-sensing device

The material level gauge is usually installed on the feed bin to detect the material in the ash hopper. When the material reaches a certain height, the material level gauge will send a signal to the electric control box to trigger the operation of the AV pump powder conveying.

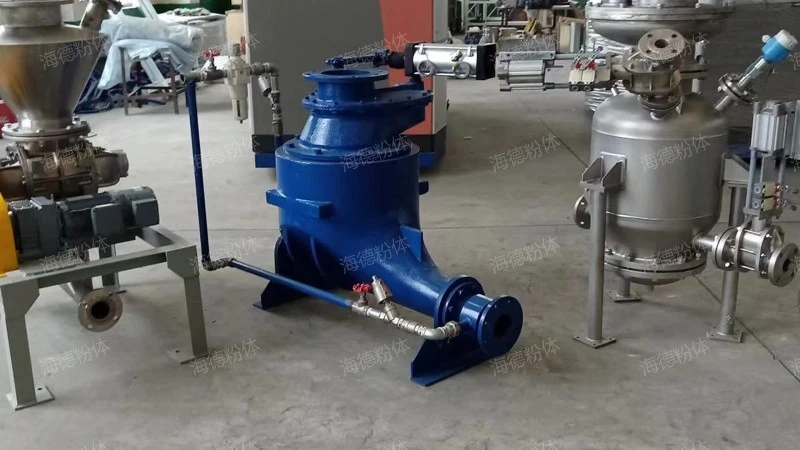

AV pump powder conveying

3、AV pump powder conveying function

AV pump powder conveyingmultifunctional, with functions such as reduce material loss, save space, environmental protection and dust removal, process control and material handling，the main structure includes pressure transducer, air control box, level-sensing device, ash conveying pipeline, feed dome valve and so on，This productSimple structure and reliable operation.，it is an ideal choice for customers to buy AV pump powder conveying。

AV pump powder conveying

4、Functional advantages of AV pump powder conveying

AV pump powder conveyings have the following advantages.

1. Closed conveying system

The AV pump powder conveying adopts a fully enclosed transportation system, and the materials are transported in a closed pipeline, which effectively prevents the materials from absorbing moisture, fouling or mixing with other impurities during transportation.

2. easy accessibility

The AV pump powder conveying operation is relatively simple, which is convenient for operators to get started quickly.

3. Wear and corrosion resistance

The AV pump powder conveying pump body itself is wear-resistant and corrosion-resistant, and can transport high-temperature and rough materials.

4. Strong conveying capacity

Based on the power of compressed air and the principle of dense-phase low-speed pneumatic conveying, the AV pump powder conveying can effectively and accurately convey materials and improve production efficiency.

5. High degree of automation

The AV pump powder conveying is easy to realize automatic control, which can reduce manpower input and improve production efficiency. At the same time, its automatic control system can also ensure the stability and reliability of the conveying process.

AV pump powder conveying

5、AV pump powder conveying use

AV pump powder conveyingIt has the functions of reduce material loss, environmental protection and dust removal, material handling, reduce material loss and save space，the product looks atmospheric.，usually used in forge, metallurgy, light industry, metallurgy, building materials and other fields。

AV pump powder conveying

6、AV pump powder conveying characteristics

AV pump powder conveyingmaintenance workload is small,good ash-gas ratio,energy-efficient,environmental protection,compact structure，is designed by Hyde with advanced technology。

AV pump powder conveying

AV pump powder conveyingusually used in medicine, glass fiber, glass fibre, chemical industry, semiconductor and other fields，is a common powder conveying equipment。
