Introduction to HDF type bottom conveying pump, bin pump advantages, characteristics and principles

HDF type bottom conveying pumpas an efficient pneumatic conveying equipment，simple operation,simple operation,strong adaptability,high reliability,simple operation，super quality and competitive price。

1、Brief introduction of HDF type bottom conveying pump

HDF type bottom conveying pumpalso called bin pump, it is a kind of positive pressure pneumatic conveying equipment.，it has the functions of material handling, powder conveying, pneumatic transport, pneumatic ash conveying and material handling，has been favored by more and more customers.。

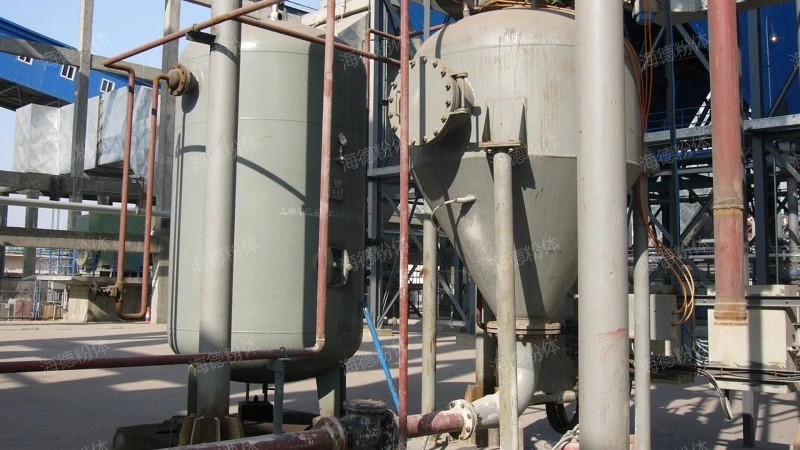

HDF type bottom conveying pump

2、HDF type bottom conveying pump structure composition

The HDF type bottom conveying pump has the following structure

1. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

2. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

3. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

4. pump body

The core part of the HDF type bottom conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

5. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

HDF type bottom conveying pump

3、HDF type bottom conveying pump principle

HDF type bottom conveying pumpIt is a part of positive pressure pneumatic ash removal system to transport loose materials such as powder and granule through pipelines in a long distance and with high efficiency.，also known as sending tank, pneumatic conveying pump or bin pump, it is a pressure vessel that uses compressed air (or other inert gas) as power source.，the advantage is The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the HDF type bottom conveying pump is relatively low, which is helpful for energy saving and emission reduction.、The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.、The operation mode is fully enclosed and automatic, and it can also be operated manually.，the main features are efficient transportation, high reliability, omniseal, pollution-free transportation and simple operation，is a HDF type bottom conveying pump。

HDF type bottom conveying pump

4、HDF type bottom conveying pump advantage

The advantages of HDF type bottom conveying pump are as follows:

1. Convenient maintenance

Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.

2. Simple operation

The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.

3. Good flexibility

It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.

4. Efficient transportation

Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.

5. High reliability

Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, it can still maintain good working performance and ensure the continuity and stability of material transportation.

HDF type bottom conveying pump

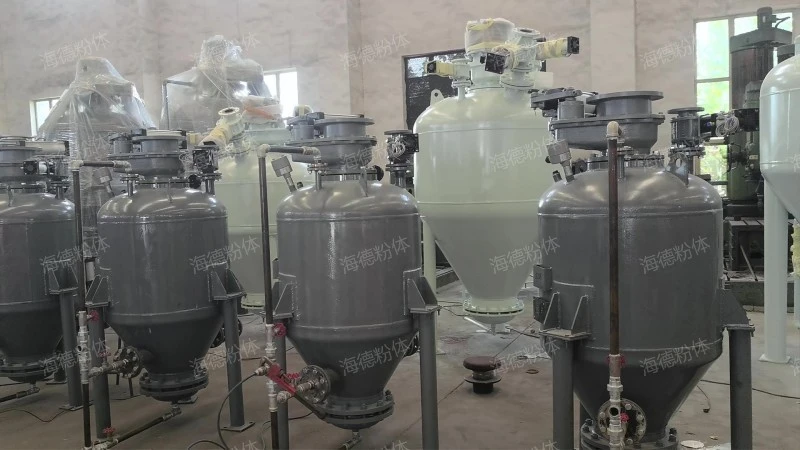

5、HDF type bottom conveying pump HD real picture

Display of HDF type bottom conveying pump with different specifications and models。

HDF type bottom conveying pump

Note: All the pictures in this article were taken by hyde powder manufacturer.。

6、Advantages of HDF type bottom conveying pump principle

HDF type bottom conveying pumpat the start of the operation,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.。

HDF type bottom conveying pump

HDF type bottom conveying pumpis a kind of high quality and low price HDF type bottom conveying pump，the product looks beautiful.。
