What is a Large capacity powder conveying pump? Introduction to the principle of bin pump structure

Large capacity powder conveying pumpalso known as sending tank, pneumatic conveying pump or bin pump, it is a pressure vessel that uses compressed air (or other inert gas) as power source.，It is a product series that integrates powder conveying, material handling, pneumatic ash conveying, particle transport and environmental protection and dust removal，super quality and competitive price。

1、Brief introduction of Large capacity powder conveying pump

Large capacity powder conveying pumpis a kind of equipment used for pneumatic conveying, which is mainly used to convey powdery or granular materials to designated places through airflow.，features include flexible layout, automation, simple operation, meet the requirements of environmental protection and efficient transportation，It is a part of positive pressure pneumatic ash removal system to transport loose materials such as powder and granule through pipelines in a long distance and with high efficiency.，it is an ideal choice for customers to buy Large capacity powder conveying pump。

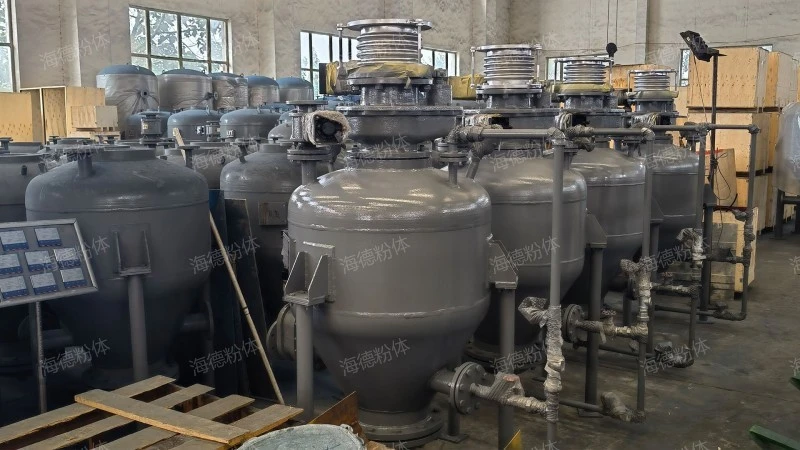

Large capacity powder conveying pump

2、Large capacity powder conveying pump structure

The Large capacity powder conveying pump structure is introduced as follows:

1. pump body

The core part of the Large capacity powder conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

2. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

3. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

4. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

5. pump body

The core part of the Large capacity powder conveying pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

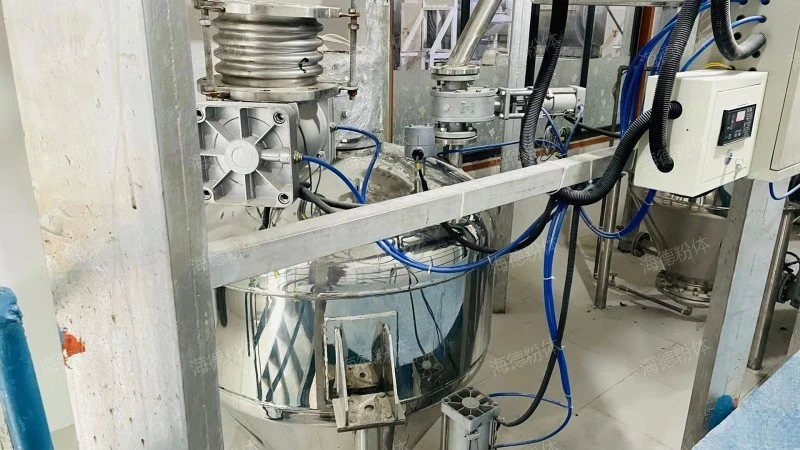

Large capacity powder conveying pump

3、Large capacity powder conveying pump video

You can buy Large capacity powder conveying pump according to your needs and show you Large capacity powder conveying pump videos.。

Large capacity powder conveying pump

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. the main features are omniseal, high reliability, convenient maintenance, flexible layout and simple operation。

4、Large capacity powder conveying pump advantage

The advantages of Large capacity powder conveying pump are as follows:

1. Good flexibility

It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.

2. Efficient transportation

Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.

3. Environmental protection and energy saving

Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Large capacity powder conveying pump is relatively low, which is helpful for energy saving and emission reduction.

4. Simple operation

The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.

5. High reliability

Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, it can still maintain good working performance and ensure the continuity and stability of material transportation.

Large capacity powder conveying pump

5、Working principle of Large capacity powder conveying pump

Large capacity powder conveying pumpWhen the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.。

Large capacity powder conveying pump

6、How much is the Large capacity powder conveying pump?

The Large capacity powder conveying pump price is introduced as follows:

1. Product technology

The more advanced the technology, the higher the price will be, otherwise the equipment price will be low, and users must pay attention to whether their own technology meets the production requirements when purchasing equipment.

2. Self quality

The Large capacity powder conveying pump is made of high-quality materials, and the cost of the product is high, so the price of the product will also rise. hyde has always adhered to high quality in the construction of Large capacity powder conveying pump and won the trust of customers.

3. geographical position

hyde powder located in jinan, Shandong province., the transportation here is developed and convenient, and the products can be transported to the designated place in a short time, which saves customers a sum of transportation expenses.

4. Brand strength

At present, there are various brands of Large capacity powder conveying pump in shandong(Province). The performance, quality and after-sales of products under different brands are different, and the prices of Large capacity powder conveying pump are different.

5. Manufacturer's strength

Our factory is a direct selling manufacturer of Large capacity powder conveying pump, with independent production and processing facilities, few circulation links and low circulation cost.

Large capacity powder conveying pump

Large capacity powder conveying pumpIt can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.、The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.、The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Large capacity powder conveying pump is relatively low, which is helpful for energy saving and emission reduction.，Commonly used inparticle transport,pneumatic ash conveying,material handling,pneumatic transport,powder conveying and so on。
