Introduction to Horizontal bin pump, advantages, characteristics and principles of bin pump

Horizontal bin pumpis a professional equipment adopting positive pressure pneumatic conveying mode.，is a common Horizontal bin pump，is a Horizontal bin pump，support customization。

1、Brief introduction of Horizontal bin pump

Horizontal bin pumpas an efficient pneumatic conveying equipment，the product looks atmospheric.。

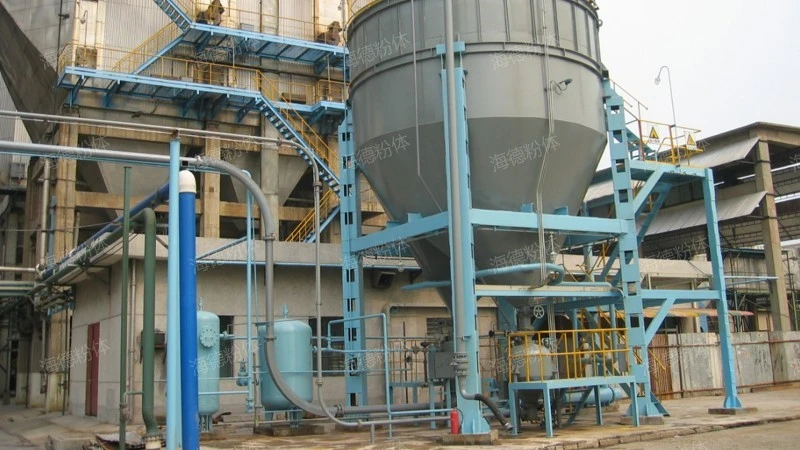

Horizontal bin pump

2、Introduction of advantages of Horizontal bin pump

Horizontal bin pumps have the following advantages.

1. Strong adaptability

Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. Horizontal bin pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.

2. High reliability

Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, it can still maintain good working performance and ensure the continuity and stability of material transportation.

3. Convenient maintenance

Compact structure, easy installation and maintenance. The wear and tear of all parts can be checked regularly, and the damaged parts can be replaced in time to ensure the normal operation of the equipment. The maintenance cost is relatively low, which is helpful to improve the economy and service life of the equipment.

4. Simple operation

The operation is simple and convenient, and usually adopts automatic control mode, which is suitable for the actual needs of engineering. Automatic control can be realized by programming, which reduces manual operation and labor intensity.

5. Good flexibility

It can be combined with other conveying equipment (such as pipelines, valves, etc.) to form a complete conveying system. The conveying mode is flexible and diverse, and it can be unloaded at a single point or at multiple points to meet different conveying requirements.

Horizontal bin pump

3、Advantages of Horizontal bin pump principle

The Horizontal bin pump has the following principles.

1. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Horizontal bin pump system can enter the next feeding-conveying-discharging cycle.

2. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

3. Feeding stage

The feed valve of the Horizontal bin pump is opened, and the material enters the pump body of the Horizontal bin pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

4. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Horizontal bin pump system can enter the next feeding-conveying-discharging cycle.

5. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

Horizontal bin pump

4、Introduction of Horizontal bin pump characteristics

Horizontal bin pumpthe main features are convenient maintenance, efficient transportation, simple operation, environmental protection and energy saving and strong adaptability，is a Horizontal bin pump，Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.、Made of high-quality materials and advanced technology, it has high reliability and durability. In the harsh working environment, the Horizontal bin pump can still maintain good working performance, ensuring the continuity and stability of material transportation.、The operation mode is fully enclosed and automatic, and it can also be operated manually.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Horizontal bin pump is relatively low, which is helpful for energy saving and emission reduction.、The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.，at runtime,It is a part of positive pressure pneumatic ash removal system to transport loose materials such as powder and granule through pipelines in a long distance and with high efficiency.，is an advanced Horizontal bin pump developed by our company in combination with the actual situation of the industry。

Horizontal bin pump

5、Working principle of Horizontal bin pump

Horizontal bin pumpin the course of work,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.，The structure is novel, special, advanced, reasonable and scientific.，it is mainly composed of control system, fluidizer, control system, pump body and air evacuation valve。

Horizontal bin pump

6、Horizontal bin pump price

The Horizontal bin pump price is introduced as follows:

1. quality factor

The quality of the product determines the production process and results. Good quality means that the raw materials of the product are better and the price will definitely be higher.

2. geographical position

Different provinces and regions have different consumption levels, different market positioning and different prices.

3. Overall configuration

The overall configuration has a great influence on the price. Generally speaking, the higher the configuration, the higher its cost input and the higher the selling price of the product, which is beyond doubt. hyde has made a comprehensive thinking on the overall configuration of products, and at the same time has strictly controlled the material selection and design of products, so the price of products with the same configuration can easily meet the actual purchasing needs of customers.

4. Model specification

Specifications and models have a great influence on the price of Horizontal bin pump, so different specifications and models have different selling prices. Customers can reasonably select product specifications and models according to their own needs, so that products can meet their own required standards in terms of specifications and prices.

5. Different regions

hyde powder has a geographical advantage, where the transportation is developed, the product transportation cost is low, and the price and consumption level are also low, which provides a good sales environment for Horizontal bin pump.

Horizontal bin pump

Horizontal bin pumpalso known as sending tank, pneumatic conveying pump or bin pump.，it is widely used in electricity industry, Cement industry, grain processing, chemical lines and Building materials industry。
