Introduction to Intermittent bin pump, introduction to bin pump function advantages and characteristics

Intermittent bin pumpis a kind of equipment used for pneumatic conveying, which is mainly used to convey powdery or granular materials to designated places through airflow.。The following is to introduce the Intermittent bin pump:

1、Brief introduction of Intermittent bin pump

Intermittent bin pumpas an efficient pneumatic conveying equipment，it has the characteristics of large conveying capacity, flexible layout, convenient maintenance, environmental protection and energy saving and efficient transportation，multifunctional, with functions such as pneumatic ash conveying, powder conveying, environmental protection and dust removal, particle transport and environmental protection and dust removal。

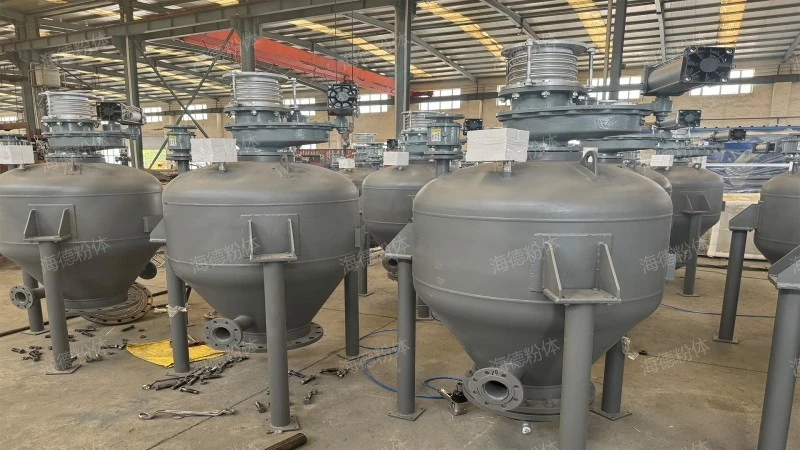

Intermittent bin pump

2、Intermittent bin pump characteristics

Intermittent bin pumpfeatures include convenient maintenance, flexible layout, omniseal, strong adaptability and simple operation，the main structure includes fluidizer, air evacuation valve, intake valve, control system and fluidizer，productThe overall structural design is simple, diverse and beautiful.，in the course of work,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.。

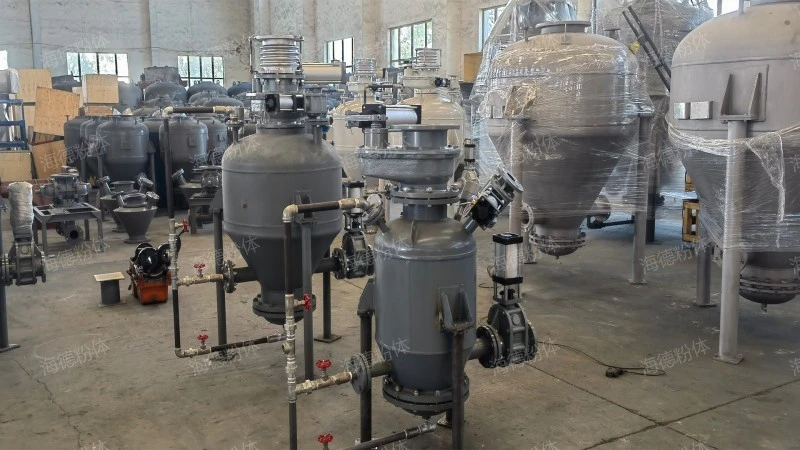

Intermittent bin pump

3、Intermittent bin pump structure

The Intermittent bin pump structure is introduced as follows:

1. pump body

The core part of the Intermittent bin pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

2. Feed valve and discharge valve

The feed valve is used to control the material entering the pump body, and the discharge valve is used to control the material discharging from the pump body. These valves are usually ball valves, butterfly valves or gate valves, which require good sealing to prevent material leakage and gas leakage.

3. Air intake device

Comprises an air inlet pipeline, an air inlet valve and other components. The air inlet pipe is used to introduce compressed air into the pump body, and the air inlet valve can control the flow and pressure of compressed air. The performance of air intake device directly affects the conveying speed and efficiency of materials.

4. level-sensing device

Used to detect the material level in the pump body. Common level gauges include capacitive level gauges and ultrasonic level gauges. Through the material level gauge, the feeding amount can be accurately controlled to avoid the situation that the pump body is too full or the material is insufficient.

5. pump body

The core part of the Intermittent bin pump is used to contain materials. The pump body is generally a cylindrical pressure vessel, and its material is usually carbon steel or stainless steel to ensure sufficient strength to withstand internal pressure. In the design, the volume of the pump body should be considered, which will be determined according to the actual delivery requirements.

Intermittent bin pump

4、Advantages of Intermittent bin pump principle

Intermittent bin pumpat work,When the material enters the pump body and is full, it is gasified to make the material form a fluidized state and smoothly enter the mixing chamber. At the same time, the compressed air is ejected at high speed through the jet nozzle and fully mixed with the fluid material. The high-speed airflow drives the material to pass through a specific pipeline, which converts the kinetic energy of compressed air into pressure energy, and at the same time, the air and the material are mixed again, so as to improve the speed of the material and make it move forward along the conveying pipeline, thus achieving the purpose of conveying powdery materials.。

Intermittent bin pump

5、Intermittent bin pump principle

The principle of Intermittent bin pump is introduced as follows:

1. Feeding stage

The feed valve of the Intermittent bin pump is opened, and the material enters the pump body of the Intermittent bin pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

2. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

3. Discharge stage

After the material is transported to the destination, it is discharged through the discharge valve. The destination can be a silo, a reaction kettle and other equipment for receiving materials. After discharging, the whole Intermittent bin pump system can enter the next feeding-conveying-discharging cycle.

4. Feeding stage

The feed valve of the Intermittent bin pump is opened, and the material enters the pump body of the Intermittent bin pump under the action of gravity or other feeding devices. In this process, the pressure inside the pump body is basically the same as the external atmospheric pressure to ensure the smooth entry of materials.

5. Conveying stage

When the material in the pump body reaches a certain amount, the feed valve is closed. Then, introduce compressed air into the pump body. The compressed air expands rapidly in the pump body, so that the material is fully mixed with the air, and the material is pushed along the conveying pipeline under the action of air pressure.

Intermittent bin pump

Intermittent bin pumpThe structural design is simple, novel and special.，it is mainly composed of control system, intake valve, pump body, control system and bleeder valve，the advantage is Can use compressed air and other power sources to transport loose materials such as powder and granule at a long distance and with high efficiency. The conveying capacity is large, which can meet the requirements of large conveying capacity and improve production efficiency.、The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.、Adopt fully sealed and pollution-free transportation mode, which meets the requirements of environmental protection. During transportation, materials will not leak, thus avoiding environmental pollution and material waste. Compared with other transportation modes, the energy consumption of the Intermittent bin pump is relatively low, which is helpful for energy saving and emission reduction.、Suitable for a variety of material types, such as powder, granular and other loose materials. The transportation distance is long, which can meet the transportation needs of different distances and different terrains. Intermittent bin pumps of different models and specifications can be customized according to specific needs to adapt to different application scenarios.、The unloading mode is flexible, and it can be unloaded at a single point or at multiple points.。
