What is a Lock gas feeder? Introduction to the principle of Feeder structure

Lock gas feederis the main equipment for dust removal equipment, ash discharge, air supply and other equipment feeding.，it is an ideal choice for customers to buy Lock gas feeder。

1、Brief introduction of Lock gas feeder

Lock gas feederis a common material conveying equipment.，widely used in chemical industry, plastic metallurgy, building materials cement, mine, building materials and other fields，The overall structural design is relatively simple，it is mainly composed of main valve (including shell, end cover, impeller, sealing structure, etc.), impeller, vent, equalizing exhaust port and motor reducing gear。

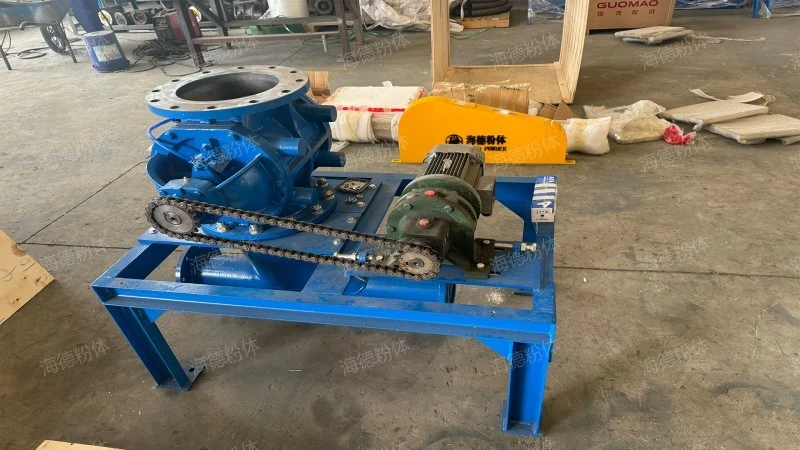

Lock gas feeder

2、Lock gas feeder performance advantage

Lock gas feeders have the following advantages.

1. Continuous feeding

It can evenly and continuously supply materials into the clinker pipe, ensuring the stability and continuity of material transportation.

2. Good sealing performance

Excellent sealing structure, preventing dust from leaking out and prolonging the service life of motor parts and lubrication system.

3. Strong overload capacity

Low impact inertia force, suitable for frequent starting and reverse rotation.

4. Smooth operation and low noise.

Uniform and stable feeding process, stable discharging operation, low noise, few faults and long service life.

5. High sealing property

The design of special sealing structure enables the Lock gas feeder to maintain high sealing performance during transportation, reduce material leakage and improve transportation efficiency.

Lock gas feeder

3、Lock gas feeder structure composition

The Lock gas feeder has the following structure

1. impeller

Impeller is the key part of the Lock gas feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

2. sealing element

Seals are used to ensure the sealing performance of the Lock gas feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

3. Rotor and shell

The rotor is the core component of the Lock gas feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

4. Equalizing exhaust port

The side of the Lock gas feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

5. Motor and transmission device

The motor provides power for the Lock gas feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

Lock gas feeder

4、Lock gas feeder application

Lock gas feederIt has a wide range of uses, including continuously and uniformly feed or discharge., ensure air tightness of the system, blowing-in, equipment feeding and continuously and uniformly feed or discharge.，customizable。

Lock gas feeder

5、Lock gas feeder application

Lock gas feederIt has a wide range of uses, and is often used inmaterial handling,prevent gas or dust leakage,dust removal equipment discharges dust.,ensure air tightness of the system,blowing-in and so on，the product looks beautiful.，the main structure includes motor and transmission device, protective devices (such as sprockets, sprocket covers, etc.), sealing element, equalizing exhaust port, main valve (including shell, end cover, impeller, sealing structure, etc.) and so on，This Lock gas feederThe structure is novel, special, advanced, reasonable and scientific.。

Lock gas feeder

6、hyde's strength

The company has many years of Lock gas feeder manufacturing experience, large scale and strong strength.。

hyde powder

Lock gas feederThe driving device drives the rotor to rotate in the cylindrical casing, and the material falls from the upper hopper, which is filled in the spaces between the blades and discharged with the rotation of the blades to the lower part. The side of the machine body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.，By adjusting the parameters such as Lock gas feeder speed or blade angle, the conveying capacity of materials can be flexibly adjusted to meet different technological requirements.、The design of special sealing structure enables the Lock gas feeder to maintain high sealing performance during transportation, reduce material leakage and improve transportation efficiency.、It has strong impact resistance, can bear the impact force generated by materials during transportation, and ensures the stable operation of the equipment.、Excellent sealing structure, preventing dust from leaking out and prolonging the service life of motor parts and lubrication system.、The key components inside the equipment, such as impeller and bushing, are made of excellent materials and have high wear resistance, which can meet the needs of long-term and high-strength material transportation.。
