What is a Ceramic feeder? Introduction to the Working Principle of Feeder

Ceramic feedermainly used for dust removal equipment, dust discharge, air supply and other equipment feeding process.，is a kind of Ceramic feeder manufactured by hyde powder。The following is to introduce the Ceramic feeder:

1、Brief introduction of Ceramic feeder

Ceramic feederis the main equipment for dust removal equipment, ash discharge, air supply and other equipment feeding.，it has the characteristics of run smoothly, low noise, good sealing performance, favorable price and easy maintenance，The price is low and affordable。

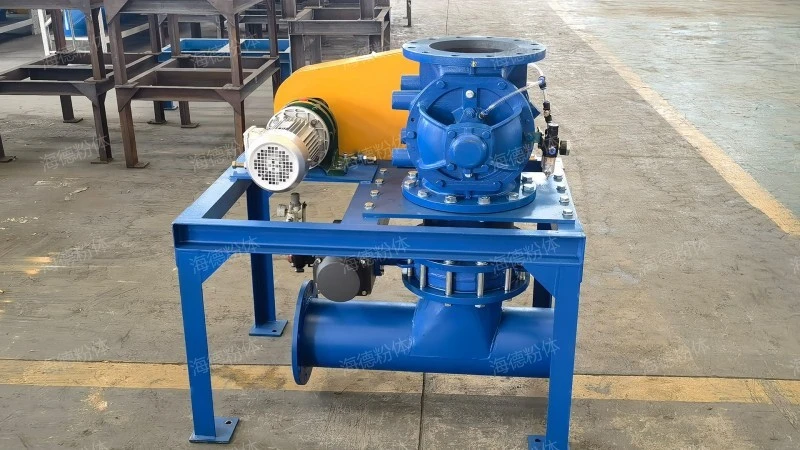

Ceramic feeder

2、Ceramic feeder function

Ceramic feedermultifunctional, with functions such as blowing-in, ensure air tightness of the system, equipment feeding, prevent gas or dust leakage and material handling，the product looks beautiful.，it is usually composed of protective devices (such as sprockets, sprocket covers, etc.), impeller, motor and transmission device, motor reducing gear and vent，has been favored by more and more customers.。

Ceramic feeder

3、Ceramic feeder performance advantage

Ceramic feeders have the following advantages.

1. High wear resistance

The key components inside the equipment, such as impeller and bushing, are made of excellent materials and have high wear resistance, which can meet the needs of long-term and high-strength material transportation.

2. Easy maintenance

The structural design of the Ceramic feeder makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.

3. Compact and beautiful

By adopting the principle of planetary rotation, the input and output shafts of the Ceramic feeder are on the same axis and directly connected with the motor, which makes the whole structure compact, beautiful and novel in shape, small in size and light in weight.

4. Automatic locking mechanism

The Ceramic feeder has an automatic locking mechanism and the electric push rod has a two-way safety system, which makes the work reliable, stable and flexible.

5. Anti-leakage design

The bearing and gear box are far away from the valve body to avoid the influence of high temperature dust. At the same time, the front and rear end covers have good sealing performance, which effectively prevents dust from leaking out and prolongs the service life of moving parts and lubrication systems.

Ceramic feeder

4、Structural advantages of Ceramic feeder

The Ceramic feeder has the following structure

1. sealing element

Seals are used to ensure the sealing performance of the Ceramic feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

2. Equalizing exhaust port

The side of the Ceramic feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

3. Motor and transmission device

The motor provides power for the Ceramic feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

4. impeller

Impeller is the key part of the Ceramic feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

5. Rotor and shell

The rotor is the core component of the Ceramic feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

Ceramic feeder

5、Ceramic feeder video

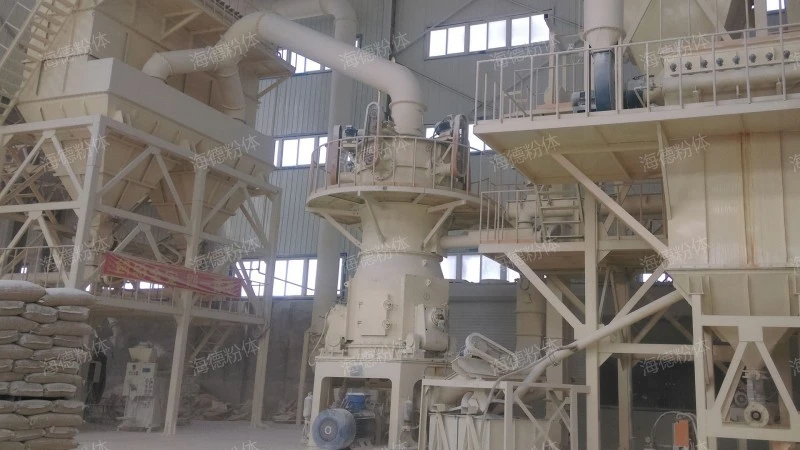

On-site aerial photography of Ceramic feeder。

Ceramic feeder

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. Simple structure and reliable operation.，generally, it is composed of protective devices (such as sprockets, sprocket covers, etc.), sealing element, equalizing exhaust port, main valve (including shell, end cover, impeller, sealing structure, etc.), rotor and shell and other major components。

Ceramic feederthe product looks atmospheric.，features include flexible configuration, low noise, high wear resistance, shockproof and strong reliability，is widely used in powder engineering, pneumatic conveying and dust removal system.。
