Introduction to Pneumatic material sealing pump, Material seal pump advantages, characteristics and principles

Pneumatic material sealing pumpIt is an advanced pneumatic conveying equipment for powder.，it has the functions of Dust control, System supporting use, Waste disposal, Dust control and Raw material transportation，the main features are Pollution-free transportation, be of simple construction, Small maintenance, Wear is small and Simple operation，widely used inglass,pottery and porcelain,Processing industry,building materials,electricity industry and other industries，the main structure includes Feed port and discharge port, Bottom vaporization device, sealing device, Supporting and connecting parts and injector。The following is to introduce the Pneumatic material sealing pump:

1、Brief introduction of Pneumatic material sealing pump

Pneumatic material sealing pumpIt is a new type of pneumatic conveying equipment for powder, which belongs to the category of low-pressure dilute phase conveying, and mainly uses the ejector effect of high-speed airflow to convey powder materials.。

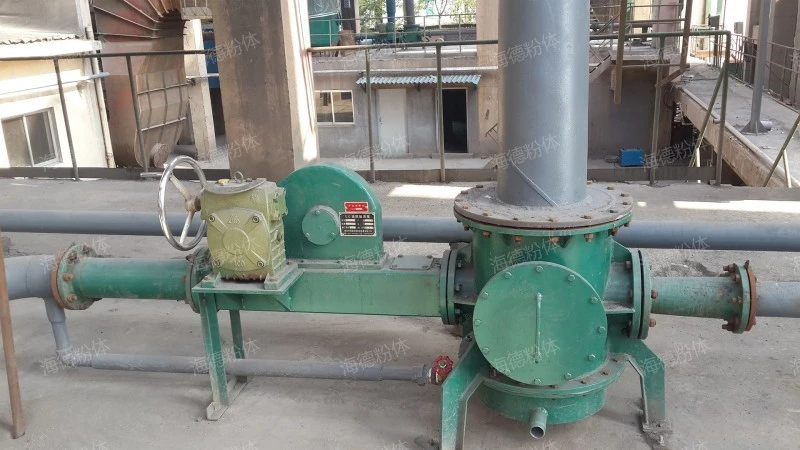

Pneumatic material sealing pump

2、Pneumatic material sealing pump field real shot

Speak directly with facts on the spot。

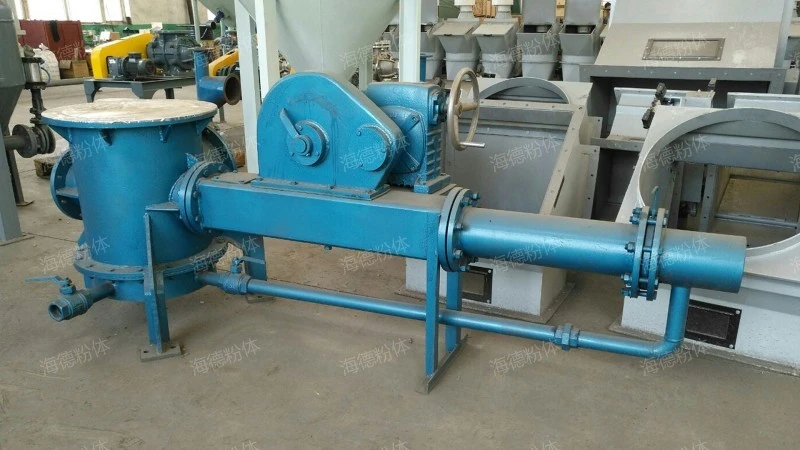

Pneumatic material sealing pump

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. the product looks beautiful.。

3、Pneumatic material sealing pump structure

The Pneumatic material sealing pump structure is introduced as follows:

1. Nozzle adjusting device

The nozzle adjusting device is used to adjust the air outlet volume and air outlet angle of the nozzle to adapt to different conveying requirements and powder characteristics. By adjusting the nozzle adjusting device, the conveying performance of the Pneumatic material sealing pump can be optimized and the conveying efficiency and stability can be improved.

2. injector

Nozzle is one of the key parts of the Pneumatic material sealing pump, which is responsible for generating high-speed airflow and ejecting powder materials for transportation. The design and manufacturing accuracy of the nozzle have an important influence on the performance of the Pneumatic material sealing pump.

3. Feed port and discharge port

The inlet is used to add powder materials into the Pneumatic material sealing pump, and the outlet is responsible for discharging the transported powder materials. The design of inlet and outlet needs to consider the fluidity, sealing and easy cleaning of powder.

4. Cylindrical pump body

The cylindrical pump body is the main part of the Pneumatic material sealing pump, which contains the nozzle and powder materials, and provides the necessary space for air flow and powder to be mixed and transported. The material and structure design of the pump body need to consider the factors such as wear resistance, corrosion resistance and sealing.

5. Bottom vaporization device

The bottom vaporizing device is an optional component in the Pneumatic material sealing pump. It vaporizes the powder at the bottom of the pump body by steam or other vaporizing media to reduce the friction and wear between the powder and the pump body and improve the smoothness and efficiency of transportation.

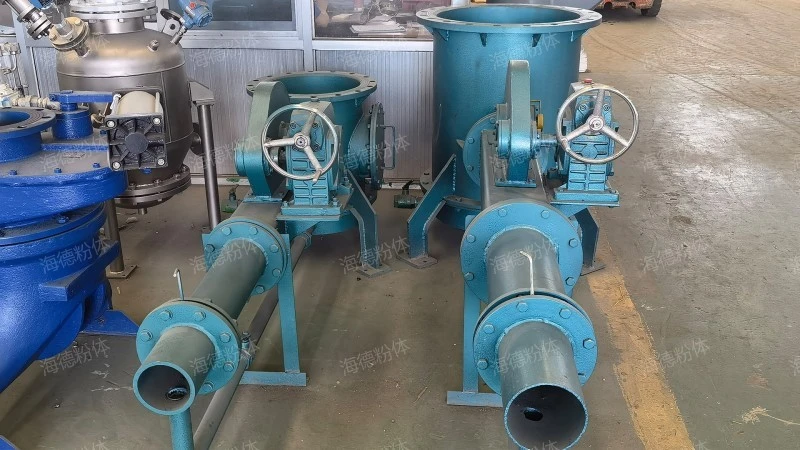

Pneumatic material sealing pump

4、Pneumatic material sealing pump principle

Pneumatic material sealing pumpat runtime,Using the action of air jet, the air drives the ash particles to send the ash to ash storage. The energy when the Pneumatic material sealing pump works comes from two parts: one part is the kinetic energy of the fan, and the other part is the potential energy of the material column. When the material column is high, the potential energy is high and the pressure is high, the conveying capacity is correspondingly large, and vice versa.，multifunctional, with functions such as System supporting use, Waste disposal, Long-distance or complex terrain material transportation, Conveying of powdery materials and Dust control，The structure is novel, special, advanced, reasonable and scientific.，it is mainly composed of Nozzle adjusting device, Cylindrical pump body, Nozzle adjusting device, Feed port and discharge port and Cylindrical pump body，it has the characteristics of Can be continuously conveyed., omniseal, Long service life, Simple operation and Transport stability，is a kind of high quality and low price Pneumatic material sealing pump。

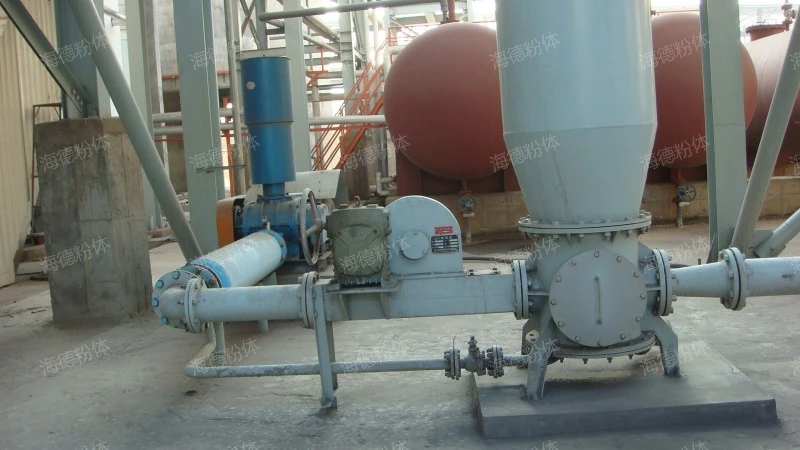

Pneumatic material sealing pump

5、Pneumatic material sealing pump advantage

The advantages of Pneumatic material sealing pump are as follows:

1. Low pressure transportation, little wear and tear.

The Pneumatic material sealing pump adopts low-pressure conveying mode, and the pressure of ash conveying medium is low, so the equipment pipes and valves are not easy to wear and prolong the service life.

2. Strong adaptability and flexible layout

It can be flexibly arranged and configured according to the specific conditions of the system to meet the transportation needs of different projects.

3. Low pressure transportation, little wear and tear.

The Pneumatic material sealing pump adopts low-pressure conveying mode, and the pressure of ash conveying medium is low, so the equipment pipes and valves are not easy to wear and prolong the service life.

4. regulate automatically

It can automatically adjust the output to achieve good ash conveying effect.

5. Continuous conveying

It can be transported continuously, and the output of equipment can be automatically adjusted to achieve good ash conveying effect.

Pneumatic material sealing pump

Pneumatic material sealing pumpIt is a product series that integrates System supporting use, Dust control, Raw material transportation, Conveying of powdery materials and Dust control，It is a kind of equipment that uses the ejector effect of high-speed airflow to transport powdery materials.，easy to operate,Can be continuously conveyed.,be of simple construction,Small maintenance,Reliable operation。
