What is a Side mounted rotary feeder? Introduction to the advantages, characteristics, and principles of the Feeder

Side mounted rotary feederis widely used in powder engineering, pneumatic conveying and dust removal system.，it has the functions of material handling, dust removal equipment discharges dust., ensure air tightness of the system, continuously and uniformly feed or discharge. and blowing-in，widely used in mine, plastic metallurgy, building materials cement, energy mining industry, metallurgy and other fields，the product looks beautiful.，modern technology。

1、Brief introduction of Side mounted rotary feeder

Side mounted rotary feedermainly used for dust removal equipment, dust discharge, air supply and other equipment feeding process.，at runtime,Based on a rotor with several blades rotating in a cylindrical casing. When the rotor rotates, materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, the material is conveyed to the lower part and discharged. At the same time, the pressure equalizing exhaust port on the side of the machine body can exhaust the high-pressure gas generated by the rotation of the impeller, so as to reduce the phenomenon of gas ejection and ensure the smooth falling of materials.，is a common Side mounted rotary feeder。

Side mounted rotary feeder

2、Advantages of Side mounted rotary feeder principle

Side mounted rotary feederin the course of work,Through the rotation of the rotor with several blades in the cylindrical casing, the materials are uniformly and continuously transported from the upper hopper to the lower part to realize the function of feeding or discharging. In the pneumatic conveying system, the Side mounted rotary feeder is one of the key components, which can supply materials evenly into the clinker pipe. At the same time, in the separation and dust collection part of the system, it also has the functions of unloader and air lock.，multifunctional, with functions such as blowing-in, dust removal equipment discharges dust., continuously and uniformly feed or discharge., ensure air tightness of the system and prevent gas or dust leakage，the product looks atmospheric.。

Side mounted rotary feeder

3、Structural advantages of Side mounted rotary feeder

The Side mounted rotary feeder has the following structure

1. impeller

Impeller is the key part of the Side mounted rotary feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

2. Equalizing exhaust port

The side of the Side mounted rotary feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

3. Rotor and shell

The rotor is the core component of the Side mounted rotary feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

4. Motor and transmission device

The motor provides power for the Side mounted rotary feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

5. sealing element

Seals are used to ensure the sealing performance of the Side mounted rotary feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

Side mounted rotary feeder

4、Side mounted rotary feeder function

Side mounted rotary feedermultifunctional, with functions such as equipment feeding, prevent gas or dust leakage, material handling, equipment feeding and dust removal equipment discharges dust.，can be customized according to user's needs.。

Side mounted rotary feeder

5、Side mounted rotary feeder price advantage

The Side mounted rotary feeder price is introduced as follows:

1. company strength

The nature of the manufacturer can also greatly affect the price of the Side mounted rotary feeder. General manufacturers are divided into direct sellers, agents and middlemen. If they are direct selling manufacturers, there are not too many intermediate links, and their sales prices are low.

2. raw material

The quality of materials directly determines the cost. The worse the materials are, the lower the cost will be, and the cheaper the price will be. Of course, the materials are better and the cost is higher, so the overall quotation is naturally higher.

3. Proper management mode

Each manufacturer's sales model is different, and the preferential degree of products is also different. Some manufacturers adopt the mode of "thin profit and quick turnover", and the price is relatively cheap. Some manufacturers sell their products at high prices to earn high profits. When purchasing products, they must compare the prices to avoid being cheated.

4. technology

Each customer needs different products, wants to achieve different purposes, and has different product technical design. The higher or more advanced the technical requirements, the more the product cost will be, and the price will increase with the increase of cost. On the contrary, the price will be cheaper.

5. product costs

The manufacturer has a fixed raw material supplier, so that the raw material price given by the raw material supplier to the manufacturer will be lower, the raw material cost invested by the manufacturer will be reduced, and the price of the Side mounted rotary feeder will also be reduced.

Side mounted rotary feeder

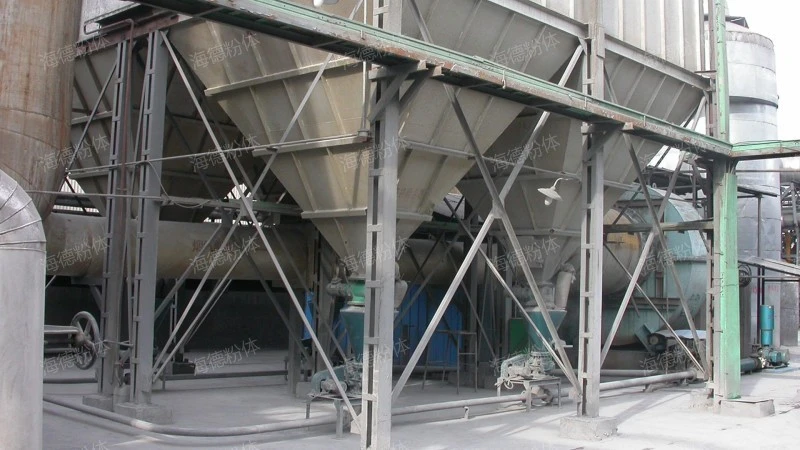

6、hyde powder delivery site

The following is the live video of Side mounted rotary feeder designed and produced by hyde powder for users, from which we can see the The key components inside the equipment, such as impeller and bushing, are made of excellent materials and have high wear resistance, which can meet the needs of long-term and high-strength material transportation.、Impeller, bushing and other key components are made of high-quality wear-resistant materials, which can withstand the friction and wear during material transportation and prolong the service life of the equipment.、Using the principle of planetary rotation, the input and output shafts are on the same axis, which has compact structure, small volume and light weight.、Due to the use of high-quality materials and advanced technology, the service life of the Side mounted rotary feeder is longer, reducing the frequency of replacement and maintenance.、It has strong impact resistance, can bear the impact force generated by materials during transportation, and ensures the stable operation of the equipment. of hyde powderSide mounted rotary feeder.。

Side mounted rotary feeder

As you can see from the live video.hyde the main features are low noise, flexible adjustment, high wear resistance, strong overload capacity and favorable price。

Side mounted rotary feederSimple structure and advanced technology.，structure mainly includes: motor and transmission device, rotor and shell, equalizing exhaust port, sealing element, protective devices (such as sprockets, sprocket covers, etc.) and so on，it has the functions of ensure air tightness of the system, prevent gas or dust leakage, blowing-in, continuously and uniformly feed or discharge. and material handling。
