What is a Quantitative feeder? Introduction to the principle of Feeder structure

Quantitative feederas an important bulk material conveying equipment，It has the functions of dust removal equipment discharges dust., ensure air tightness of the system, continuously and uniformly feed or discharge., material handling and prevent gas or dust leakage，is based on hyde is a Quantitative feeder newly developed by hyde powder。The following is to introduce the Quantitative feeder:

1、Brief introduction of Quantitative feeder

Quantitative feederis the main equipment for dust removal equipment, ash discharge, air supply and other equipment feeding.，is a kind of Quantitative feeder manufactured by hyde。

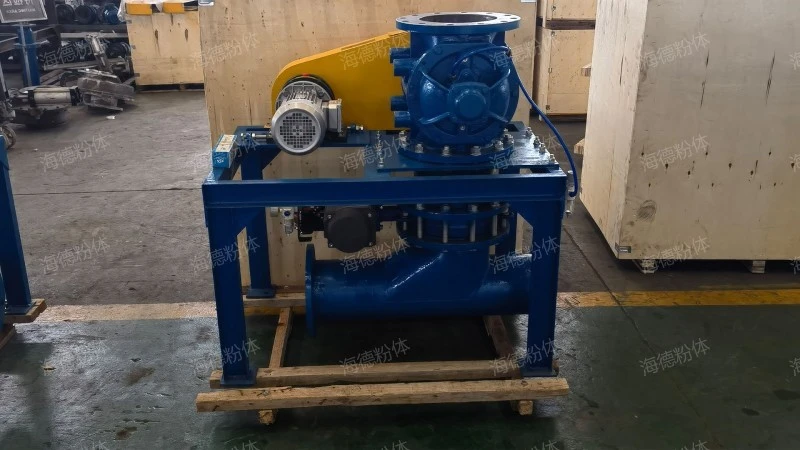

Quantitative feeder

2、Introduction of advantages of Quantitative feeder

Quantitative feeders have the following advantages.

1. High wear resistance

Impeller, bushing and other key components are made of high-quality wear-resistant materials, which can withstand the friction and wear during material transportation and prolong the service life of the equipment.

2. Strong overload capacity

Low impact inertia force, suitable for frequent starting and reverse rotation.

3. Easy maintenance

The structural design of the Quantitative feeder makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.

4. overpower protection

Some Quantitative feeders also have overload protection function, which can automatically stop protection in case of abnormal situation to avoid equipment damage.

5. Flexible adjustment

Some Quantitative feeders are equipped with variable frequency governors, which can adjust the rotating speed of the impeller according to the actual demand, thus flexibly controlling the conveying quantity of materials.

Quantitative feeder

3、Quantitative feeder structure composition

The Quantitative feeder has the following structure

1. sealing element

Seals are used to ensure the sealing performance of the Quantitative feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

2. impeller

Impeller is the key part of the Quantitative feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

3. Equalizing exhaust port

The side of the Quantitative feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

4. Motor and transmission device

The motor provides power for the Quantitative feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

5. Rotor and shell

The rotor is the core component of the Quantitative feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

Quantitative feeder

4、Quantitative feeder function

Quantitative feederit has the functions of material handling, continuously and uniformly feed or discharge., blowing-in, ensure air tightness of the system and continuously and uniformly feed or discharge.，it is widely used in plastic metallurgy, building materials cement, energy mining industry, chemical raw material and mine，the product looks atmospheric.。

Quantitative feeder

5、Advantages of Quantitative feeder principle

Quantitative feederat runtime,The driving device drives the rotor to rotate in the cylindrical casing, and the material falls from the upper hopper, which is filled in the spaces between the blades and discharged with the rotation of the blades to the lower part. The side of the machine body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.，Using the principle of planetary rotation, the input and output shafts are on the same axis and directly connected with the motor, which makes the whole structure compact, beautiful and novel, small in size and light in weight.、Low impact inertia force, suitable for frequent starting and reverse rotation.、The structural design makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.、Uniform and stable feeding process, stable discharging operation, low noise, few faults and long service life.、With overload protection function, it can automatically stop the machine in case of abnormal situation to avoid equipment damage.，can be customized according to user's needs.。

Quantitative feeder

6、Quantitative feeder price advantage

The Quantitative feeder price is introduced as follows:

1. product function

The more functions a product has, the higher its manufacturing cost, so that the product can be used by customers as much as possible, which can create more useful value for customers, so the price will be higher.

2. Brand strength

At present, there are various brands of Quantitative feeder in shandong(Province). The performance, quality and after-sales of products under different brands are different, and the prices of Quantitative feeder are different.

3. Different regions

There are differences in consumption levels in different regions, which directly affect the production and manufacturing costs of products. Generally speaking, the higher the consumption level, the higher the cost of producing products, and the higher the product cost, the higher the price naturally.

4. technology content

Different manufacturers have different advanced technologies, different production processes and different performances, and the price difference is naturally quite large.

5. After-sales service level

Service factors always affect the sales price of products, and high-quality service will make customers have greater satisfaction and recognition. The service factors mainly include pre-sales service, in-sales service and after-sales service. For each stage of service, our company takes the price factor into account and makes a reasonable judgment between service and price, so that the Quantitative feeder price and service can meet the actual needs of customers.

Quantitative feeder

Quantitative feederThe overall structural design is relatively simple，the main structure includes impeller, motor reducing gear, main valve (including shell, end cover, impeller, sealing structure, etc.), impeller, motor and transmission device and so on，it has the characteristics of low noise, handsome appearance, reliable work, strong reliability and favorable price，is a common Quantitative feeder。
