Introduction to Quantitative rotary feeder, introduction to Feeder function advantages and characteristics

Quantitative rotary feederis an important part of a material handling system.，multifunctional, with functions such as prevent gas or dust leakage, material handling, equipment feeding, dust removal equipment discharges dust. and ensure air tightness of the system。

1、Brief introduction of Quantitative rotary feeder

Quantitative rotary feederis widely used in powder engineering, pneumatic conveying and dust removal system.。

Quantitative rotary feeder

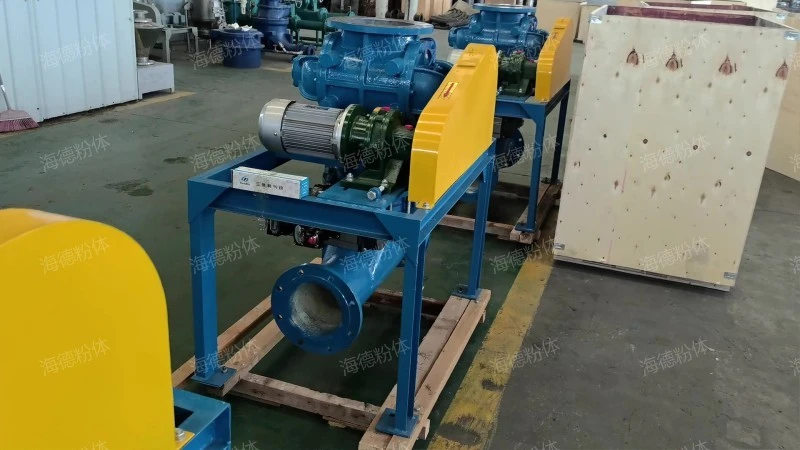

2、Physical picture of Quantitative rotary feeder

Quantitative rotary feeder picture at a glance, showing elegance.。

Quantitative rotary feeder

Note: All the pictures in this article were taken by hyde manufacturer.。

3、Structural advantages of Quantitative rotary feeder

The Quantitative rotary feeder structure is introduced as follows:

1. Equalizing exhaust port

The side of the Quantitative rotary feeder body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

2. Motor and transmission device

The motor provides power for the Quantitative rotary feeder, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

3. impeller

Impeller is the key part of the Quantitative rotary feeder to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

4. sealing element

Seals are used to ensure the sealing performance of the Quantitative rotary feeder in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

5. Rotor and shell

The rotor is the core component of the Quantitative rotary feeder, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

Quantitative rotary feeder

4、Quantitative rotary feeder application

Quantitative rotary feederMainly used forequipment feeding,blowing-in,material handling,prevent gas or dust leakage andcontinuously and uniformly feed or discharge.，the main features are favorable price, high wear resistance, compact structure, low noise and good sealing performance，in the course of work,Based on a rotor with several blades rotating in a cylindrical casing. When the rotor rotates, materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, the material is conveyed to the lower part and discharged. At the same time, the pressure equalizing exhaust port on the side of the machine body can exhaust the high-pressure gas generated by the rotation of the impeller, so as to reduce the phenomenon of gas ejection and ensure the smooth falling of materials.，generally, it is composed of sealing element, rotor and shell, equalizing exhaust port, protective devices (such as sprockets, sprocket covers, etc.), vent and other major components，is developed and improved by hyde powder。

Quantitative rotary feeder

5、Quantitative rotary feeder real shot picture

hyde powder Quantitative rotary feeder is completely upgraded, savoring the beauty of details.。

Quantitative rotary feeder

Note: All the pictures in this article were taken by hyde manufacturer.。

6、Introduction of Quantitative rotary feeder characteristics

Quantitative rotary feederfeatures include shockproof, reliable work, easy maintenance, strong reliability and strong overload capacity，It has a wide range of uses, and is often used inequipment feeding,ensure air tightness of the system,dust removal equipment discharges dust.,blowing-in,equipment feeding and so on，is a Quantitative rotary feeder，the product looks beautiful.，has been favored by more and more customers.。

Quantitative rotary feeder

Quantitative rotary feederthe advantage is The structure design is reasonable, which is convenient for daily maintenance and overhaul. At the same time, its good sealing performance also reduces the complexity and frequency of maintenance work.、With automatic locking mechanism and electric push rod with two-way insurance system, the work is reliable, stable and flexible.、Equipped with frequency conversion governor, the rotating speed of impeller can be adjusted according to actual demand, so as to flexibly control the conveying quantity of materials.、The design of special sealing structure enables the Quantitative rotary feeder to maintain high sealing performance during transportation and reduce material leakage and gas reflux.、According to users' needs, special motors, such as explosion-proof, frequency modulation, speed regulation and marine motors, are configured to meet users' special requirements. The material of the blade can also be specially processed according to the needs of users.，the product looks atmospheric.。
