Introduction to Dust pneumatic conveying material sealing pump, advantages, characteristics and principles of Material seal pump

Dust pneumatic conveying material sealing pumpIt is a new type of pneumatic conveying equipment for powder, which uses the ejector effect of high-speed airflow to convey powder materials.，it has been widely used in Thermoelectric industry, environmental protection, pottery and porcelain, medicine, Cement industry and other industries，The overall structural design is simple, diverse and beautiful.，the main structure includes sealing device, Cylindrical pump body, Feed port and discharge port, Supporting and connecting parts, injector and so on，it has the functions of Long-distance or complex terrain material transportation, Dust control, Long-distance or complex terrain material transportation, Waste disposal and Raw material transportation，be loved by our customers.。

1、Brief introduction of Dust pneumatic conveying material sealing pump

Dust pneumatic conveying material sealing pumpIt is a kind of equipment that uses the ejector effect of high-speed airflow to transport powdery materials.，the product looks beautiful.，is based on hyde is an advanced Dust pneumatic conveying material sealing pump developed by our company in combination with the actual situation of the industry。

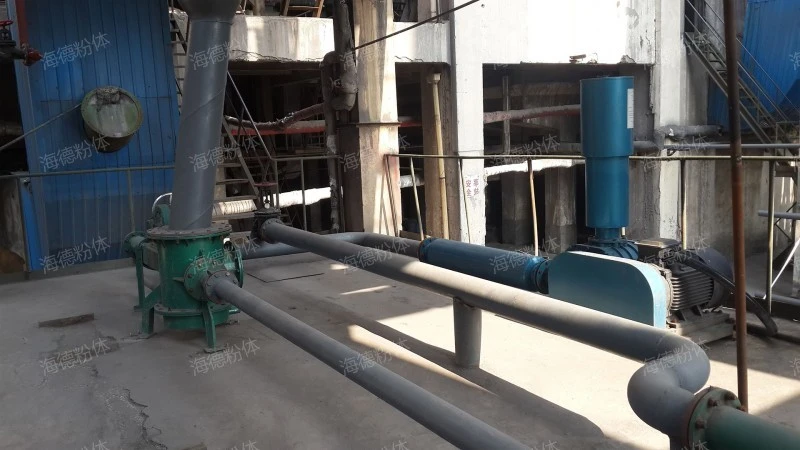

Dust pneumatic conveying material sealing pump

2、Dust pneumatic conveying material sealing pump structure composition

The Dust pneumatic conveying material sealing pump structure is introduced as follows:

1. sealing device

The sealing device is an important part in the Dust pneumatic conveying material sealing pump, which is used to ensure the tightness inside the pump body and prevent the leakage of airflow and powder. The design and manufacture of sealing device need to consider the factors such as wear resistance, corrosion resistance and sealing performance.

2. injector

Nozzle is one of the key parts of the Dust pneumatic conveying material sealing pump, which is responsible for generating high-speed airflow and ejecting powder materials for transportation. The design and manufacturing accuracy of the nozzle have an important influence on the performance of the Dust pneumatic conveying material sealing pump.

3. Feed port and discharge port

The inlet is used to add powder materials into the Dust pneumatic conveying material sealing pump, and the outlet is responsible for discharging the transported powder materials. The design of inlet and outlet needs to consider the fluidity, sealing and easy cleaning of powder.

4. Bottom vaporization device

The bottom vaporizing device is an optional component in the Dust pneumatic conveying material sealing pump. It vaporizes the powder at the bottom of the pump body by steam or other vaporizing media to reduce the friction and wear between the powder and the pump body and improve the smoothness and efficiency of transportation.

5. Cylindrical pump body

The cylindrical pump body is the main part of the Dust pneumatic conveying material sealing pump, which contains the nozzle and powder materials, and provides the necessary space for air flow and powder to be mixed and transported. The material and structure design of the pump body need to consider the factors such as wear resistance, corrosion resistance and sealing.

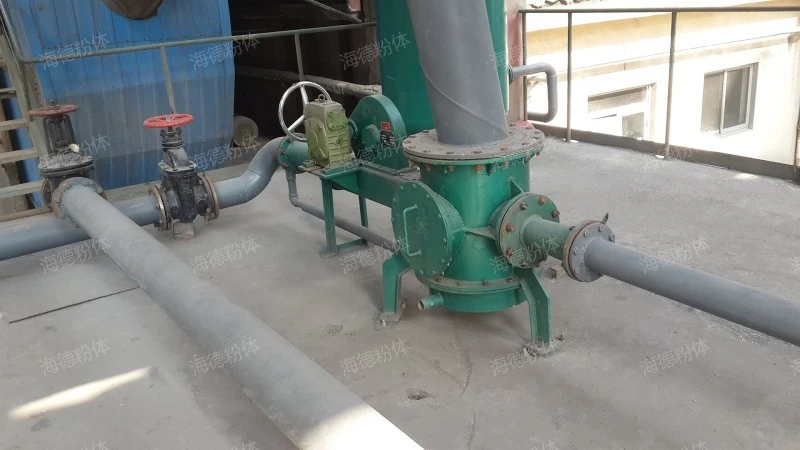

Dust pneumatic conveying material sealing pump

3、Dust pneumatic conveying material sealing pump use

The purpose of Dust pneumatic conveying material sealing pump is introduced as follows:

1. Powder material conveying

The Dust pneumatic conveying material sealing pump is mainly used for conveying all kinds of dry and loose powder materials, such as fly ash, alumina powder, dry kiln ash, limestone powder, cement powder and so on.

2. Environmental protection and dust control

In the field of environmental protection, Dust pneumatic conveying material sealing pumps can be used for dust collection and transportation, which helps to reduce dust pollution and improve the working environment.

3. Long-distance and complex terrain transportation

The Dust pneumatic conveying material sealing pump has the characteristics of Reliable operation, so it is especially suitable for conveying powder materials in long distance or complex terrain. Whether it is a mountain, a hill or a narrow space in a city, Dust pneumatic conveying material sealing pumps can easily cope with all kinds of transportation needs.

4. Supporting industrial production

In Processing industry such as commodity industry, Dust pneumatic conveying material sealing pumps can be used to transport all kinds of raw materials and finished products to improve production efficiency.

5. Waste disposal

Dust pneumatic conveying material sealing pumps are also widely used in the field of waste treatment. For example, it can transport fly ash and other wastes to designated disposal sites, or be used in recycling ways such as the production of environmentally friendly bricks. This not only helps to reduce the accumulation and pollution of waste, but also realizes the reuse of resources.

Dust pneumatic conveying material sealing pump

4、Dust pneumatic conveying material sealing pump principle

Dust pneumatic conveying material sealing pumpUsing the action of air jet, the air drives the ash particles to send the ash to ash storage. There are two main sources of energy, one is the kinetic energy of the fan, and the other is the potential energy of the material column. When the material column is high, the potential energy is high and the pressure is high, the conveying capacity is correspondingly large, and vice versa.。

Dust pneumatic conveying material sealing pump

5、Dust pneumatic conveying material sealing pump introduction video

Speak directly with facts on the spot。

Dust pneumatic conveying material sealing pump

As you can see from the live video.，hyde powder the product looks atmospheric.。

Dust pneumatic conveying material sealing pumpthe main features are be of simple construction, Small maintenance, omniseal, Long service life and easy to operate，it has the functions of System supporting use, Conveying of powdery materials, Dust control, System supporting use and Waste disposal。
