Introduction to Y-type rotary discharger, unloader specifications, model parameters

Y-type rotary dischargeris the main equipment for conveying bulk materials.，is a common Y-type rotary discharger，It can be used for equipment feeding, ensure air tightness of the system, continuously and uniformly feed or discharge., prevent gas or dust leakage, prevent gas or dust leakage, material handling and so on。

1、Brief introduction of Y-type rotary discharger

Y-type rotary dischargeris an excellent quantitative supply equipment designed for the purpose of supplying powder.，handsome appearance,good sealing performance,high wear resistance,strong reliability,easy maintenance，the advantage is It has strong impact resistance, can bear the impact force generated by materials during transportation, and ensures the stable operation of the equipment.、The key components inside the equipment, such as impeller and bushing, are made of excellent materials and have high wear resistance, which can meet the needs of long-term and high-strength material transportation.、Uniform and stable feeding process, stable discharging operation, low noise, few faults and long service life.、Low impact inertia force, suitable for frequent starting and reverse rotation.、The design of special sealing structure enables the Y-type rotary discharger to maintain high sealing performance during transportation, reduce material leakage and improve transportation efficiency.，it is widely used in grain processing, energy mining industry, chemical raw material, building materials and mine，Through the rotation of the rotor with several blades in the cylindrical casing, the materials are uniformly and continuously transported from the upper hopper to the lower part to realize the function of feeding or discharging. In the pneumatic conveying system, the Y-type rotary discharger is one of the key components, which can supply materials evenly into the clinker pipe. At the same time, in the separation and dust collection part of the system, it also has the functions of unloader and air lock.。

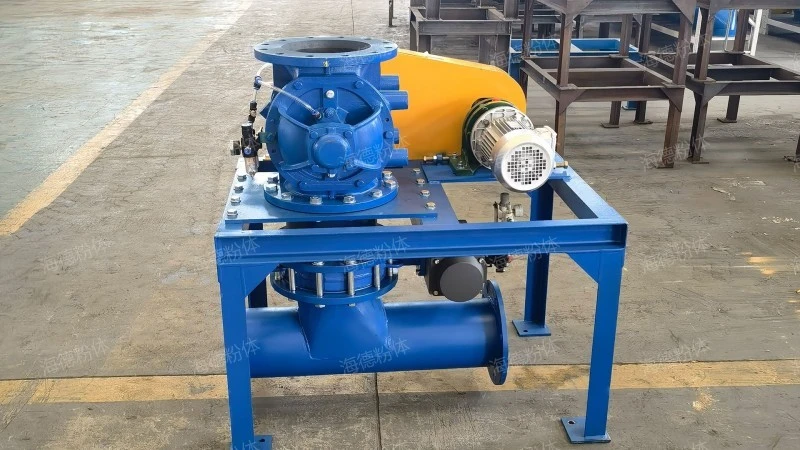

Y-type rotary discharger

2、Structural characteristics of Y-type rotary discharger

The Y-type rotary discharger has the following structure

1. Equalizing exhaust port

The side of the Y-type rotary discharger body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

2. impeller

Impeller is the key part of the Y-type rotary discharger to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

3. Motor and transmission device

The motor provides power for the Y-type rotary discharger, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

4. sealing element

Seals are used to ensure the sealing performance of the Y-type rotary discharger in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

5. Rotor and shell

The rotor is the core component of the Y-type rotary discharger, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

Y-type rotary discharger

3、Y-type rotary discharger HD picture real shot

The Y-type rotary discharger is designed by hyde powder with advanced technology, and the product has high performance advantages. In order to facilitate our customers to find a satisfactory unloader more quickly, the following high-definition pictures are provided for reference.。

Y-type rotary discharger

Note: All the pictures in this article were taken by hyde manufacturer.。

4、Y-type rotary discharger performance advantage

Y-type rotary dischargers have the following advantages.

1. Flexible configuration

By adjusting the parameters such as Y-type rotary discharger speed or blade angle, the conveying capacity of materials can be flexibly adjusted to meet different technological requirements.

2. Smooth operation and low noise.

Uniform and stable feeding process, stable discharging operation, low noise, few faults and long service life.

3. Flexible adjustment

Some Y-type rotary dischargers are equipped with variable frequency governors, which can adjust the rotating speed of the impeller according to the actual demand, thus flexibly controlling the conveying quantity of materials.

4. Strong overload capacity

Low impact inertia force, suitable for frequent starting and reverse rotation.

5. Easy maintenance

The structural design of the Y-type rotary discharger makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.

Y-type rotary discharger

5、Working principle of Y-type rotary discharger

Y-type rotary dischargerin the course of work,The driving device drives the rotor to rotate in the cylindrical casing, and the material falls from the upper hopper, which is filled in the spaces between the blades and discharged with the rotation of the blades to the lower part. The side of the machine body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.。

Y-type rotary discharger

6、Y-type rotary discharger working site

Speak directly with facts on the spot。

Y-type rotary discharger

As you can see from the live video.，Shandong Haide Fenti Engineering Co., Ltd. it has been widely used in metallurgy, chemical industry, plastic metallurgy, chemical industry, mine and other industries。

Y-type rotary dischargerWidely used indust removal equipment discharges dust.,blowing-in,equipment feeding,continuously and uniformly feed or discharge.,ensure air tightness of the system and so on，is a Y-type rotary discharger。
