What is a Frequency conversion discharger? How much is the price of the unloader?

Frequency conversion dischargeras an important bulk material conveying equipment，the product looks beautiful.。

1、Brief introduction of Frequency conversion discharger

Frequency conversion dischargeris widely used in powder engineering, pneumatic conveying and dust removal system.，The design of special sealing structure enables the Frequency conversion discharger to maintain high sealing performance during transportation and reduce material leakage and gas reflux.、According to users' needs, special motors, such as explosion-proof, frequency modulation, speed regulation and marine motors, are configured to meet users' special requirements. The material of the blade can also be specially processed according to the needs of users.、The design of special sealing structure enables the Frequency conversion discharger to maintain high sealing performance during transportation, reduce material leakage and improve transportation efficiency.、Equipped with frequency conversion governor, the rotating speed of impeller can be adjusted according to actual demand, so as to flexibly control the conveying quantity of materials.、Uniform and stable feeding process, stable discharging operation, low noise, few faults and long service life.，in the course of work,Based on a rotor with several blades rotating in a cylindrical casing. When the rotor rotates, materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, the material is conveyed to the lower part and discharged. At the same time, the pressure equalizing exhaust port on the side of the machine body can exhaust the high-pressure gas generated by the rotation of the impeller, so as to reduce the phenomenon of gas ejection and ensure the smooth falling of materials.，It is mostly used in material handling, ensure air tightness of the system, ensure air tightness of the system, material handling, prevent gas or dust leakage, equipment feeding and so on，it is an ideal choice for customers to buy Frequency conversion discharger。

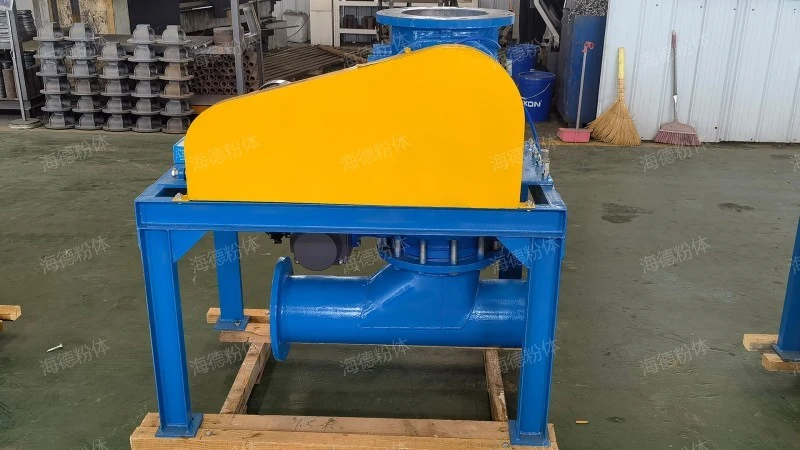

Frequency conversion discharger

2、Frequency conversion discharger use

Frequency conversion dischargerCommonly used indust removal equipment discharges dust.,blowing-in,continuously and uniformly feed or discharge.,ensure air tightness of the system,blowing-in and so on，the product looks beautiful.，it is widely used in dock, metallurgy, chemical industry, building materials cement and energy mining industry，it has the functions of ensure air tightness of the system, blowing-in, equipment feeding, continuously and uniformly feed or discharge. and dust removal equipment discharges dust.，at runtime,The motor reducer drives the impeller to rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the impellers. With the rotation of the impellers, the materials are transported to the lower part and discharged. At the same time, the exhaust port exhausts the high-pressure gas generated by the rotation of the impeller, which reduces the phenomenon of gas ejection and ensures the continuity and stability of material transportation.。

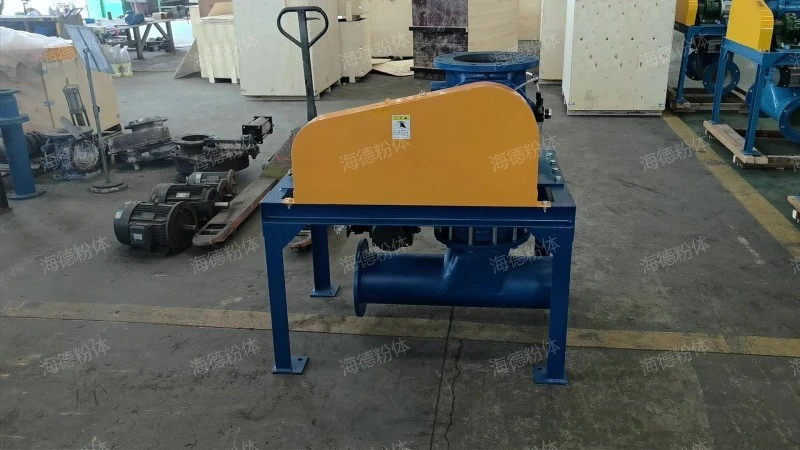

Frequency conversion discharger

3、Frequency conversion discharger structure

The Frequency conversion discharger structure is introduced as follows:

1. Equalizing exhaust port

The side of the Frequency conversion discharger body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

2. sealing element

Seals are used to ensure the sealing performance of the Frequency conversion discharger in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

3. Motor and transmission device

The motor provides power for the Frequency conversion discharger, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

4. Rotor and shell

The rotor is the core component of the Frequency conversion discharger, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

5. impeller

Impeller is the key part of the Frequency conversion discharger to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

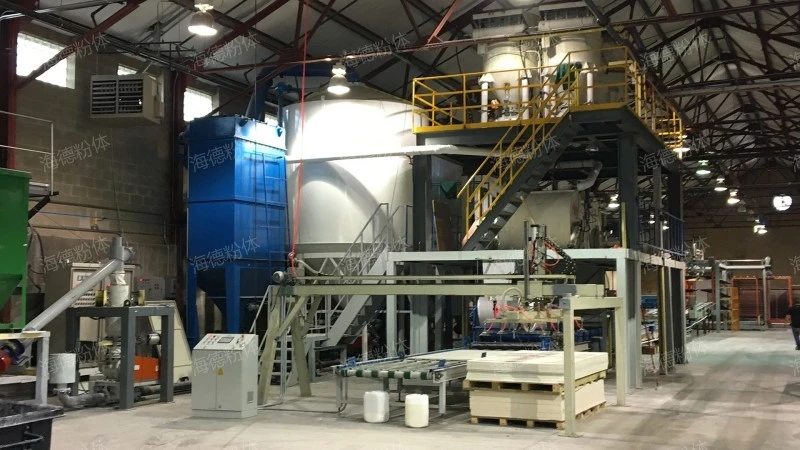

Frequency conversion discharger

4、Frequency conversion discharger advantage

The advantages of Frequency conversion discharger are as follows:

1. overpower protection

Some Frequency conversion dischargers also have overload protection function, which can automatically stop protection in case of abnormal situation to avoid equipment damage.

2. Multi-material handling

It is suitable for conveying powdery and granular materials and can meet the processing requirements of different materials.

3. Flexible adjustment

Some Frequency conversion dischargers are equipped with variable frequency governors, which can adjust the rotating speed of the impeller according to the actual demand, thus flexibly controlling the conveying quantity of materials.

4. Good sealing performance

Excellent sealing structure, preventing dust from leaking out and prolonging the service life of motor parts and lubrication system.

5. Easy maintenance

The structural design of the Frequency conversion discharger makes its maintenance relatively simple, and it is easy to carry out daily inspection and troubleshooting.

Frequency conversion discharger

5、Frequency conversion discharger picture

hyde powder Frequency conversion discharger HD picture, panoramic shooting。

Frequency conversion discharger

Note: All the pictures in this article were taken by hyde manufacturer.。

6、Introduction of Frequency conversion discharger characteristics

Frequency conversion dischargerthe main features are strong reliability, flexible adjustment, shockproof, strong overload capacity and low noise。

Frequency conversion discharger

Frequency conversion dischargerfeatures include good sealing performance, handsome appearance, compact structure, flexible configuration and shockproof，is an important part of a material handling system.。
