What is a Gray cast iron rotary discharger? Introduction to the principle of unloader structure

Gray cast iron rotary dischargeris the main equipment for dust removal equipment, ash discharge, air supply and other equipment feeding.，run smoothly,handsome appearance,favorable price,flexible adjustment,flexible configuration，has been favored by more and more customers.。

1、Brief introduction of Gray cast iron rotary discharger

Gray cast iron rotary dischargeris a device for discharging materials, which discharges materials from containers by specific mechanical or pneumatic means.，can be customized according to user's needs.。

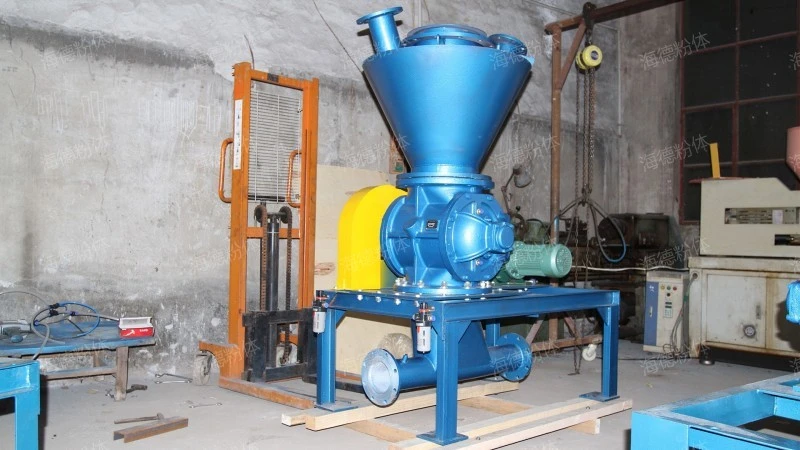

Gray cast iron rotary discharger

2、Gray cast iron rotary discharger field real shot

The Gray cast iron rotary discharger is designed by hyde with advanced technology, and the product has high performance advantages. In order to facilitate our customers to find a satisfactory unloader more quickly, the following high-definition pictures are provided for reference.。

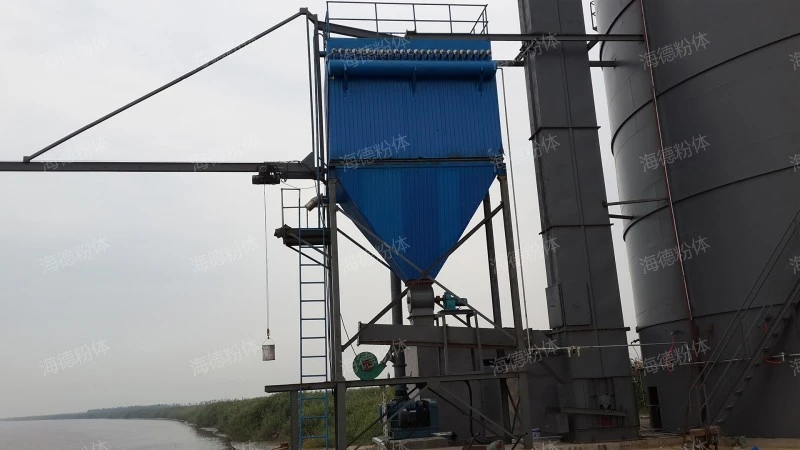

Gray cast iron rotary discharger

Note: All the pictures in this article were taken by hyde manufacturer.。

3、Gray cast iron rotary discharger structure

The Gray cast iron rotary discharger structure is introduced as follows:

1. Rotor and shell

The rotor is the core component of the Gray cast iron rotary discharger, and usually consists of several blades, which rotate in the cylindrical casing. Materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, they are transported to the lower part and discharged from the shell to protect the internal mechanism and seal, and prevent the leakage of materials and the entry of external impurities.

2. Motor and transmission device

The motor provides power for the Gray cast iron rotary discharger, and the power is transmitted to the impeller through transmission devices (such as gears and sprockets) to make it rotate. The transmission device shall be designed to ensure smooth and reliable power transmission.

3. sealing element

Seals are used to ensure the sealing performance of the Gray cast iron rotary discharger in the working process and prevent material leakage and gas backflow. High-quality seals can improve the working efficiency and service life of equipment.

4. impeller

Impeller is the key part of the Gray cast iron rotary discharger to realize material transportation. Its structural design is reasonable, which can ensure the uniform distribution of materials in the spaces between the impellers and be transported smoothly with the rotation of the impellers.

5. Equalizing exhaust port

The side of the Gray cast iron rotary discharger body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.

Gray cast iron rotary discharger

4、Gray cast iron rotary discharger display

hyde powder Gray cast iron rotary dischargerthe product looks atmospheric., the following is a panoramic shot of the Gray cast iron rotary discharger for your reference.。

Gray cast iron rotary discharger

Note: All the pictures in this article were taken by hyde manufacturer.。

5、Gray cast iron rotary discharger characteristics

Gray cast iron rotary dischargerit has the characteristics of reliable work, low noise, shockproof, reliable work and good sealing performance，multifunctional, with functions such as dust removal equipment discharges dust., material handling, prevent gas or dust leakage, blowing-in and dust removal equipment discharges dust.。

Gray cast iron rotary discharger

6、Working principle of Gray cast iron rotary discharger

Gray cast iron rotary dischargerthe principle is simple.Based on a rotor with several blades rotating in a cylindrical casing. When the rotor rotates, materials fall from the upper hopper and are filled in the spaces between the blades. With the rotation of the impeller, the material is conveyed to the lower part and discharged. At the same time, the pressure equalizing exhaust port on the side of the machine body can exhaust the high-pressure gas generated by the rotation of the impeller, so as to reduce the phenomenon of gas ejection and ensure the smooth falling of materials.，widely used inbuilding materials,dock,mine,chemical industry,grain processing and other industries，is an advanced Gray cast iron rotary discharger developed by our company in combination with the actual situation of the industry。

Gray cast iron rotary discharger

Gray cast iron rotary dischargerthe main features are easy maintenance, high wear resistance, flexible adjustment, strong overload capacity and run smoothly，in the course of work,The driving device drives the rotor to rotate in the cylindrical casing, and the material falls from the upper hopper, which is filled in the spaces between the blades and discharged with the rotation of the blades to the lower part. The side of the machine body is provided with a pressure equalizing exhaust port, which can exhaust the high-pressure gas brought by the rotation of the impeller, reduce the phenomenon of gas ejection, and facilitate the smooth falling of materials.。
